trailed heavy disc harrow / V-shaped
2,0 to 4,0 m working width / Fleaux-Fleaux discs Ø 810x10 mm / rear chassis

Features

  • The APFL-FF-H of Quivogne is a self-supporting disc-harrow in „V“ specifically engineered for hard work conditions
  • Perfect weight balancing over all the discs allows an effective attack and uniform work
  • Ideal for tillage of virgin and fallow lands, including lands with lush crop cover or crop residues
  • Working depth up to 25 cm
  • Recommended working speed 12 km/h
  • No whole soil turn, moisture remains in the soil

Specifications of APFL-FF-H

  • Working width 2,0 to 4,5 m
  • Trailed version with chassis in the middle and the wheels 295/60 x22,5:
  • - 2 wheels for models with working width 2,0 to 3,4 m
  • - 4 wheels for models with working width 3,7 bis 4,5 m
  • 2-beam tube frame. Profile of the frame 200 х 100 х 8 mm
  • Disc gangs in tube 200 х 100 х 8 mm
  • Shaft square 50 х 50 mm
  • Discs Fleaux-Fleaux Ø 810 x 10 mm.
    This disc type is made especially for light ploughing
  • Disc spacing 280 mm
  • Adjustable attack angle
  • Axle square 70, 6 axles
  • Triple waterproof bearings
  • 2 lifting hydraulic zylinder with oil-gas shock absorbers
    2 hydraulic zylinder to fold the disc harrow into transport mode
  • Working depth can be adjusted with the help of hydraulic cylinder with hydroclips:
  • - 1 cylinder in models with working width 2,0 m to 3,4 m
  • - 2 cylinder in models with working width 3,7 m to 4,5 m
  • Disc rows locking mechanism in standard equipment

Options

  • Bearing protection
  • Hydraulic adjustment of drawbar
  • Hydraulic adjustment of frame
  • Hydraulic adjustment of the attack angle
  • Side deflectors
  • Side disc ø 610 mm
  • Rear three-point linkage (for trailed rollers)
  • Heavy Crosskll roller ø 550 mm
  • Rollstel roller ø 500 mm with scrapers
  • ROLLPRO roller ø 600 mm with scrapers
  • Double roller with waved discs ø 500 mm

Heavy Crosskll roller ø 550 mm

Rollstel roller ø 500 mm with scrapers

ROLLPRO roller ø 600 mm with scrapers

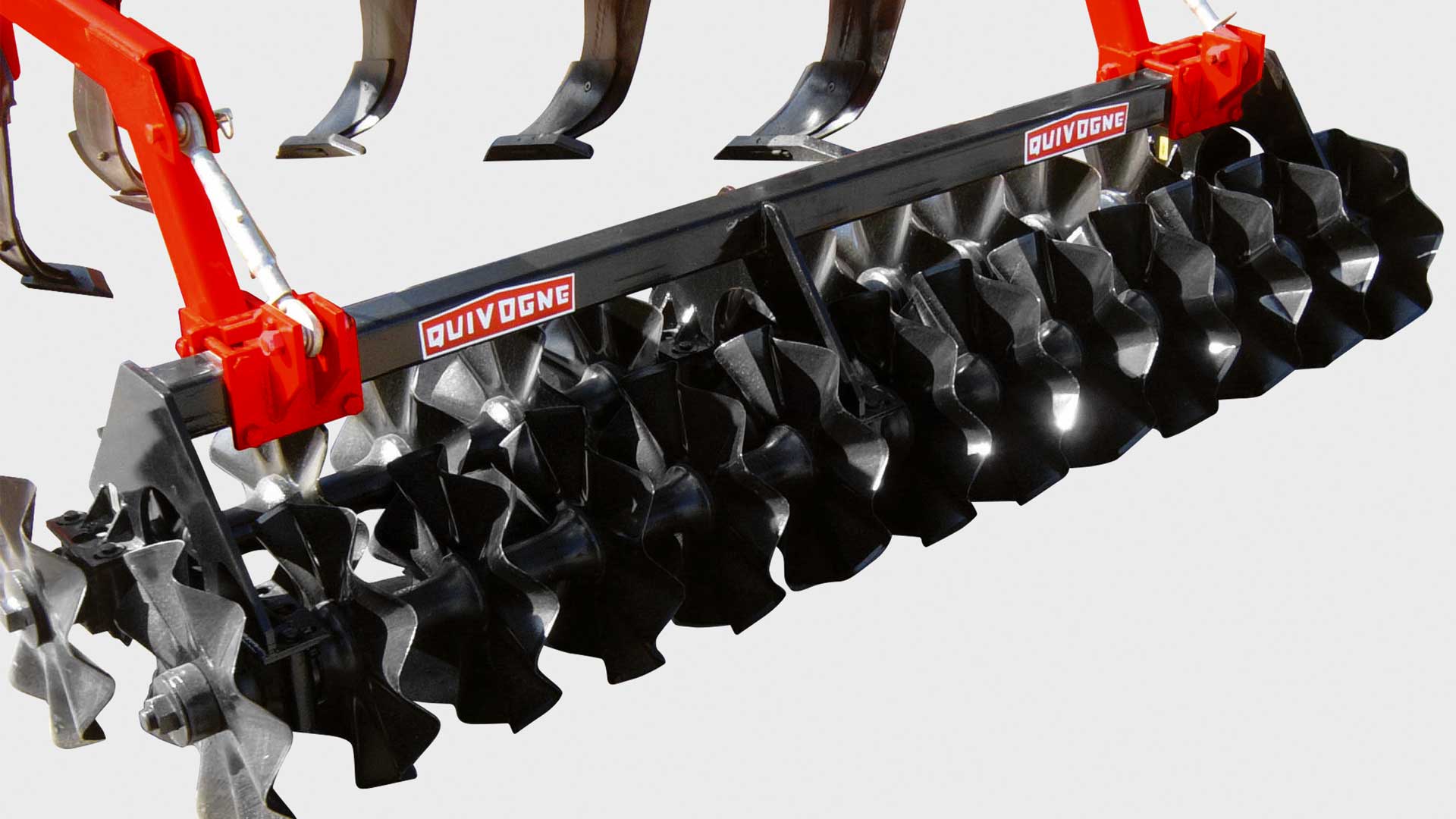

Double roller with waved discs ø 500 mm

Bearing protection

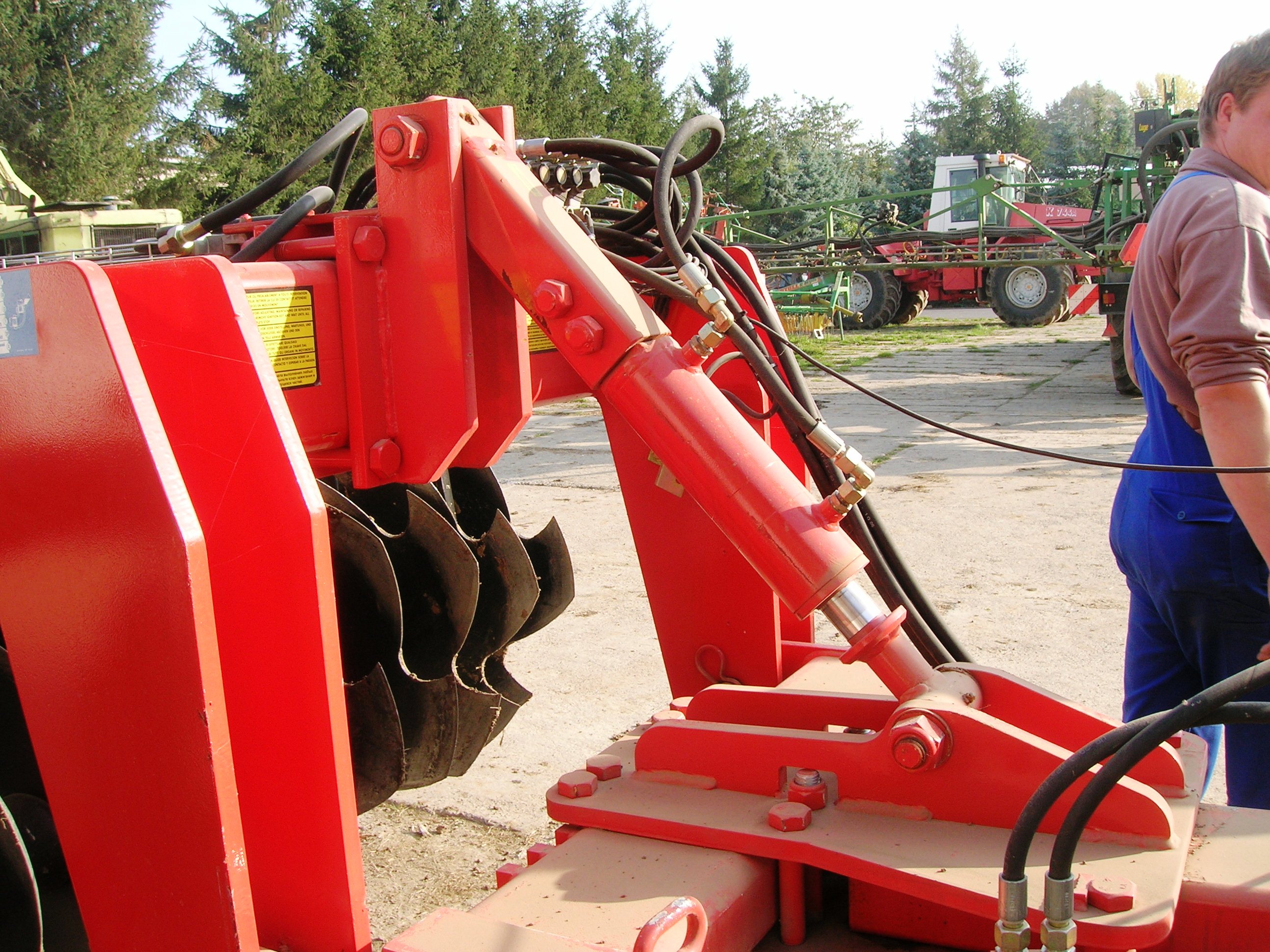

Hydraulic adjustment of drawbar

Side deflectors

Fleaux-Fleaux discs ø 810x10 mm

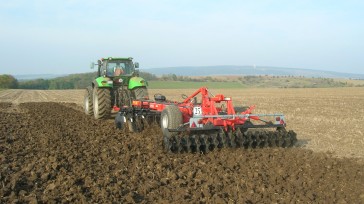

Top quality of work!


Video APFL-FF-H


Technical parameters of APFL-FF-H

Model /

Discs (pcs)

Working width

(cm)

Soil pressure

(kg)

Bearing

(pcs)

Required power

(hp)

Weight

(kg)

Productivity

(ha/h)

APFL-FF-H 14 200 226 6 120 - 140 3.170 1,5
APFL-FF-H 16 225 208 6 140 - 160 3.326 1,7
APFL-FF-H 18 255 193 6 160 - 180 3.482 1,9
APFL-FF-H 20 280 182 6 180 - 200 3.638 2,1
APFL-FF-H 22 310 172 6 200 - 220 3.793 2,3
APFL-FF-H 24 340 168 8 220 - 240 4.030 2,5
APFL-FF-H 26 370 174 8 240 - 260 4.536 2,7
APFL-FF-H 28 400 168 8 260 - 280 4.691 2,9
APFL-FF-H 30 425 164 10 280 - 300 4.910 3,1
APFL-FF-H 32 450 160 10 300 - 320 5.129 3,3
