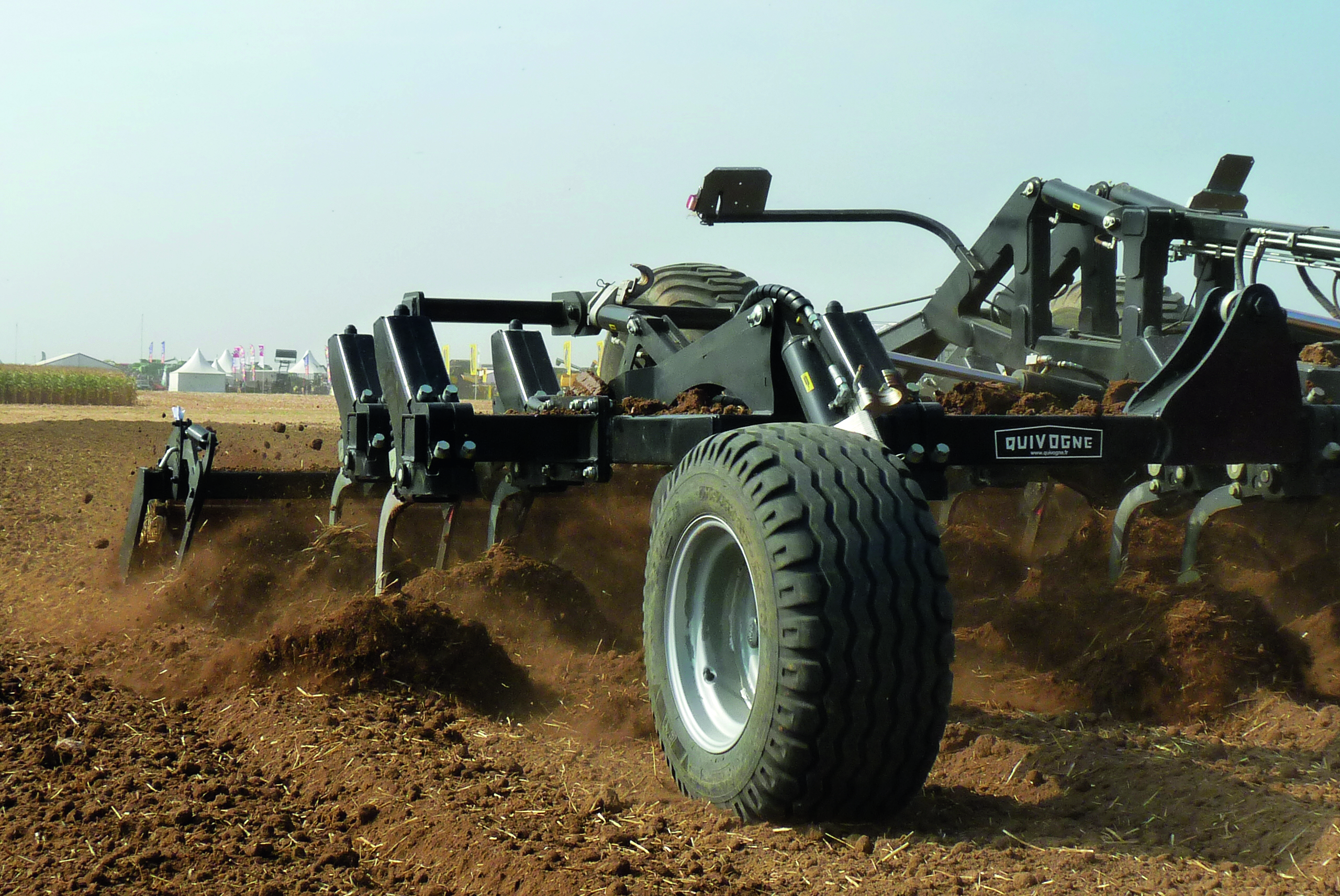

Designed for a working depth from 5 to 30 cm, the Blackbear is a performant in stubble ploughing as in pseudosubsoiling.
The important blast of Blackbear`s tines enables a regular work even in hard conditions
The tine mounting on 3 or 4 gangs assured an execellent ground-straw mix
The guard disc are mounted on springs in order to scatter straw without ploughing
„GERMAN STEEL“ is the sign of high quiality of the BLACKBEAR`s work!

Working width 6,3 or 8,1 m
Linkage category III / IV or drawbar + support wheels 550/60 x 22,5 (as an option)
Central frame profile 250x250x8 mm
Side frames 120х120х6 mm
Tine spacing 310 mm
Inter-beam spacing 800 mm
Jagged discs for levelling
Frame clearance 850 mm
The tine head has an angle of 20̊ permits the easy enter in the ground
NON-STOP stone protection
Hydraulic adjustment of working width, standard equipment
Tube roller Ø 600 mm, standard equipment

Carbide head shares
Tines with wing shares 240 mm
Tines with wing shares 370 mm
Drawbar eye Ø 50 mm with hydraulic cylinder for drawbar
Drawbar eye - hinge - Ø 80 mm with hydraulic cylinder for drawbar
Cylinder for drawbar for linkage category III / IV
L-roller Ø 600 mm with scrapers
T-roller Ø 600 mm with scrapers
U-roller Ø 600 mm with scrapers
Lamflex roller Ø 590 mm with scrapers
ROLLPRO roller Ø 600 mm with scrapers
Front support wheels 15/55 x 17 instead of standard 11,5/80 x 15,3-14 (1 pair)
Wheels 680 x 22 x 6,3 Ø 1235 mm instead of standatd wheels 550/60 x 22,5 (1 pair)
