trailed heavy disc harrow / V-shaped
4,5 to 7,3 m working width / Fleaux-Fleaux discs Ø 810x10 mm / rear chassis

Features

  • The APAVR-FF is one of the biggest „V“ disc harrows in the Quivogne range. Working widths go from 4,5 m to 7,3 m
    making this disc harrow the ideal implement for medium and large farms
  • Perfect weight balancing over all the discs allows an effective attack and uniform work
  • Ideal for tillage of virgin and fallow lands, including lands with lush crop cover or crop residues
  • Working depth up to 25 cm
  • Recommended working speed 12 km/h
  • No whole soil turn, moisture remains in the soil

Specifications of APAVR-FF

  • Working width 4,5 m to 7,3 m
  • Trailed version with rear chassis 550/6x22,5 (2 wheels)
  • Hydraulic adjustment of drawbar. Adjustable angle of attack
  • 2-beam central frame 200x100x10 mm
    3-beam outer sections frames 150x100x8 mm
  • Disc gangs 200x100x8 mm
  • Additional reinforcement bar for working width 7,3 m
  • Discs Fleaux-Fleaux Ø 810 x 10 mm.
    This disc type is made especially for light ploughing
  • Shafts are made from 50 mm square section treated high resistance steel
  • Triple waterproof steel bearings (32 kg)
  • 2 lifting rams with a hydraulic stop for depth control and a nitrogen accumulator suspension for transport
    2 folding rams with hydraulic locking, rotating hitch ring
  • Working depth can be adjusted through the depth gauge over the transport wheels
  • Disc rows locking mechanism in standard version

Options of APAVR-FF

  • Bearing protection
  • Hydraulic adjustment attack angle attack
  • Side deflectors
  • Side disc ø 610 mm
  • Three-point linkage (for trailed rollers)
  • Rake harrow, 3-rows. The three rows rake harrow helps to regulate the straw and earth flow between disc gangs.
    It explode the clods even the hardest for a fine crumble and a mulching without congestion.
  • Heavy Crosskill roller ø 550 mm
  • Rollsteel roller ø 520 mm with scraper
  • ROLLPRO roller ø 600 mm with scrapers
  • Double roller with waved discs ø 500 mm

Rollsteel roller ø 520 mm with scrapers

Double roller with waved discs ø 500 mm

Heavy Crosskill roller ø 550 mm

Disc rows locking mechanism in standard version

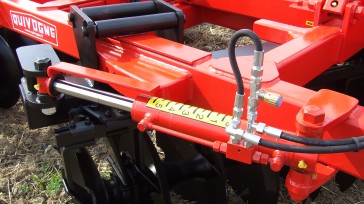

Adjustment of attack angle

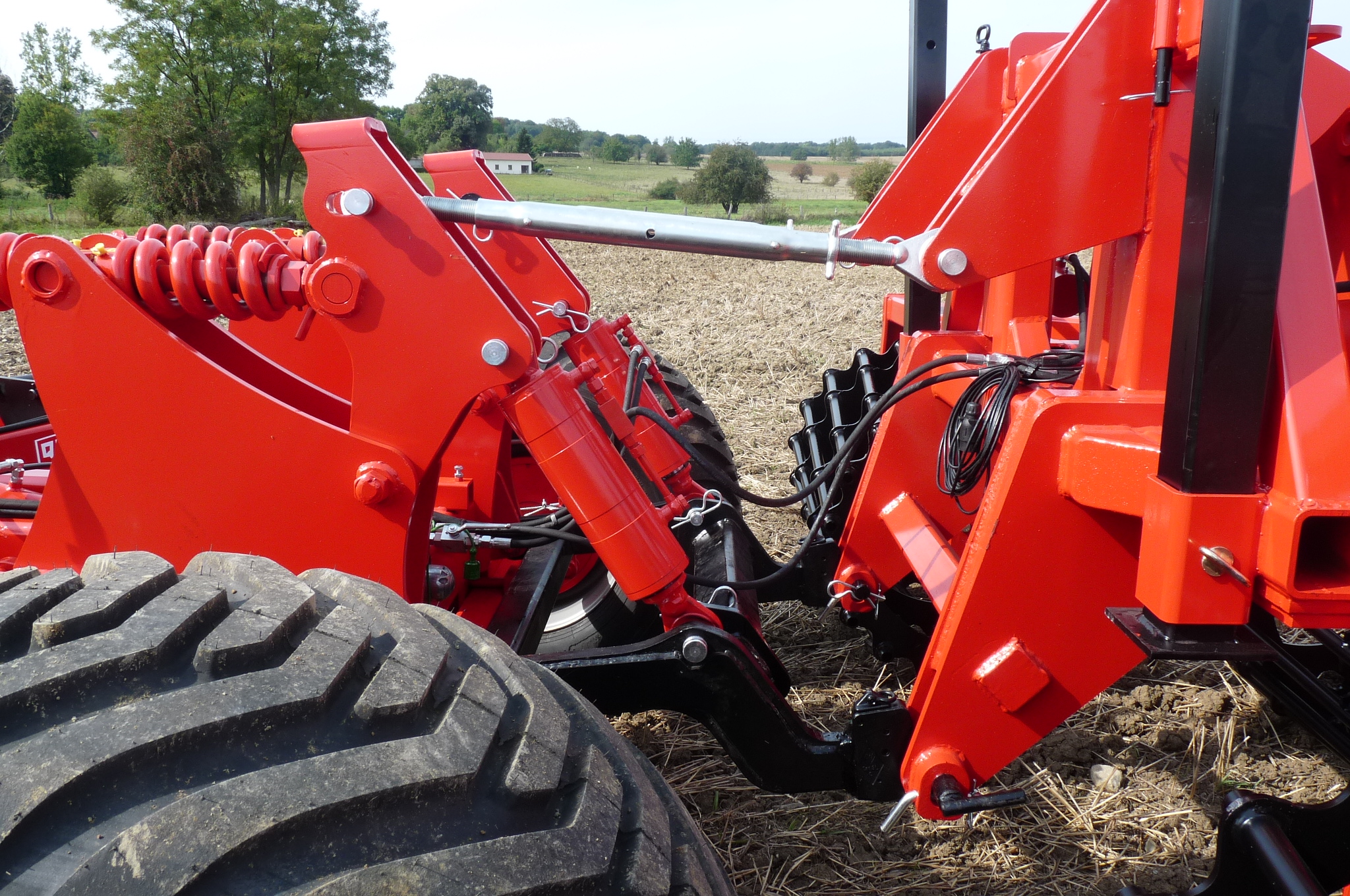

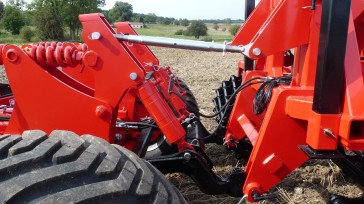

Three-point-linkage for trailed rollers

Hydraulic linkage

Drawbar

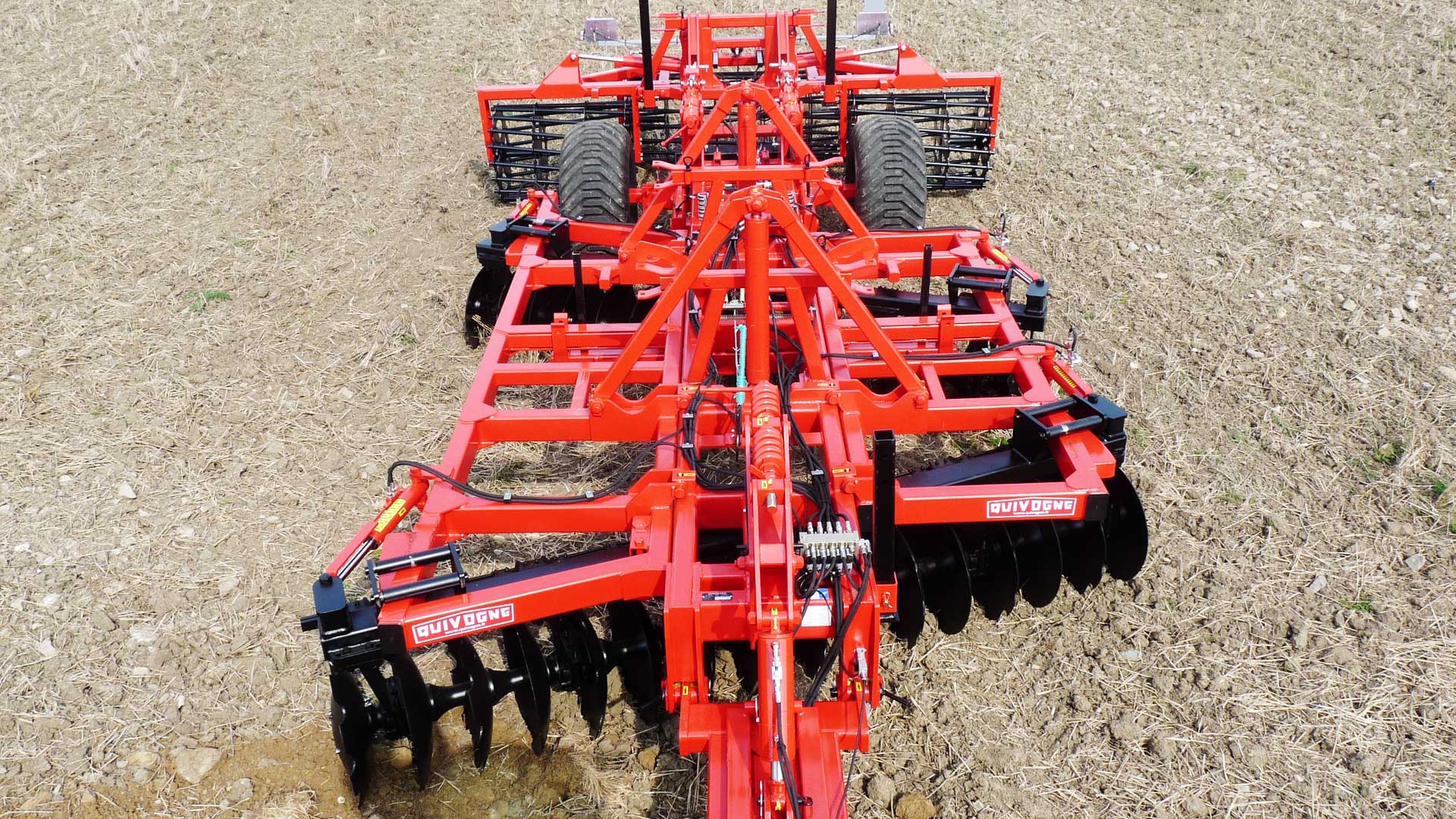

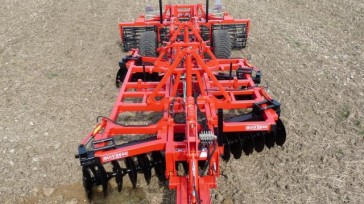

V-shapped disc harrow

Technical parameters of APAVR-FF

Model /

Discs (pcs)

Working

width (cm)

Soil

pressure (kg)

Bearing

(pcs)

Required power

(hp)

Weight

(kg)

Productivity

(ha/h)
APAVR-FF 32 450 270 10 300 - 330 8.620 3,0
APAVR-FF 36 500 251 10 330 - 360 9.020 3,2
APAVR-FF 40 560 238 12 360 - 390 9.520 3,5
APAVR-FF 44 620 228 16 390 - 420 10.020 3,8
APAVR-FF 48 675 217 16 420 - 450 10.420 4,2
APAVR-FF 52 730 211 20 450 - 480 10.956 4,5
