trailed heavy disc harrow / V-shaped
4,5 to 9,5 m working width / Fleaux-Fleaux discs Ø 810x10 mm / central chassis

Features

  • The APVRS-FF it is one of the biggest „V“ disc harrows in the Quivogne range. Working widths go from 4,5 m to 9,5 m making this disc harrow the ideal implement for medium and large farms
  • Perfect weight balancing over all the discs allows an effective attack and uniform work
  • Ideal for tillage of virgin and fallow lands, including lands with lush crop cover or crop residues
  • Working depth up to 25 cm
  • Recommended working speed 12 km/h
  • No whole soil turn, moisture remains in the soil

Specifications of APVRS-FF

  • Working width 4,5 to 9,5 m
  • Trailed version with the chassis in the middle:
  • - 4 wheels 295/60 х 22,5 for models with working width 4,5 to 7,85 m
  • - 2 wheels 550/60 х 22,5 for models with working width 8,4 to 9,5 m
  • 2-, 3- or 4-tubes frame with 2 outer sections frames, hydraulically foldable
  • Central frame profile 200x100x10 mm and the outer sections 150x100x8 mm.
    The frame is made with HLE steel
  • Shafts are made from 50 mm square section treated high resistance steel
  • Discs Fleaux-Fleaux Ø 810 x 10 mm.
    This disc type is made especially for light ploughing. Disc spacing 280 mm
  • Disc sections can be manually or hydraulically moved
  • Triple waterproof conical steel bearings
  • 2 lifting rams with a hydraulic stop for depth control and a nitrogen accumulator suspension for transport
    2 folding rams with hydraulic locking, rotating hitch ring
  • Transport width 3,0 m
  • Disc rows locking mechanism in standard version

Options of APVRS-FF

  • Bearing protection
  • Hydraulic adjustment of drawbar
  • Hydraulic adjustment of frame
  • Hydraulic adjustment of the attack angle
  • Side deflectors
  • Side disc ø 610 mm
  • Reinforced rear linkage (for trailed rollers)
  • Slatted roller ø 450 mm
  • Tube roller ø 450 mm
  • Z-roller ø 500 mm
  • L-roller ø 600 mm with scrapers
  • T-roller ø 600 mm with scrapers
  • U-roller ø 600 mm with scrapers
  • Lamflex roller ø 590 mm
  • Heavy Crosskill roller ø 530 mm
  • Heavy Cambridge roller ø 550 mm

Tube roller ø 450 mm

Slatted roller ø 450 mm

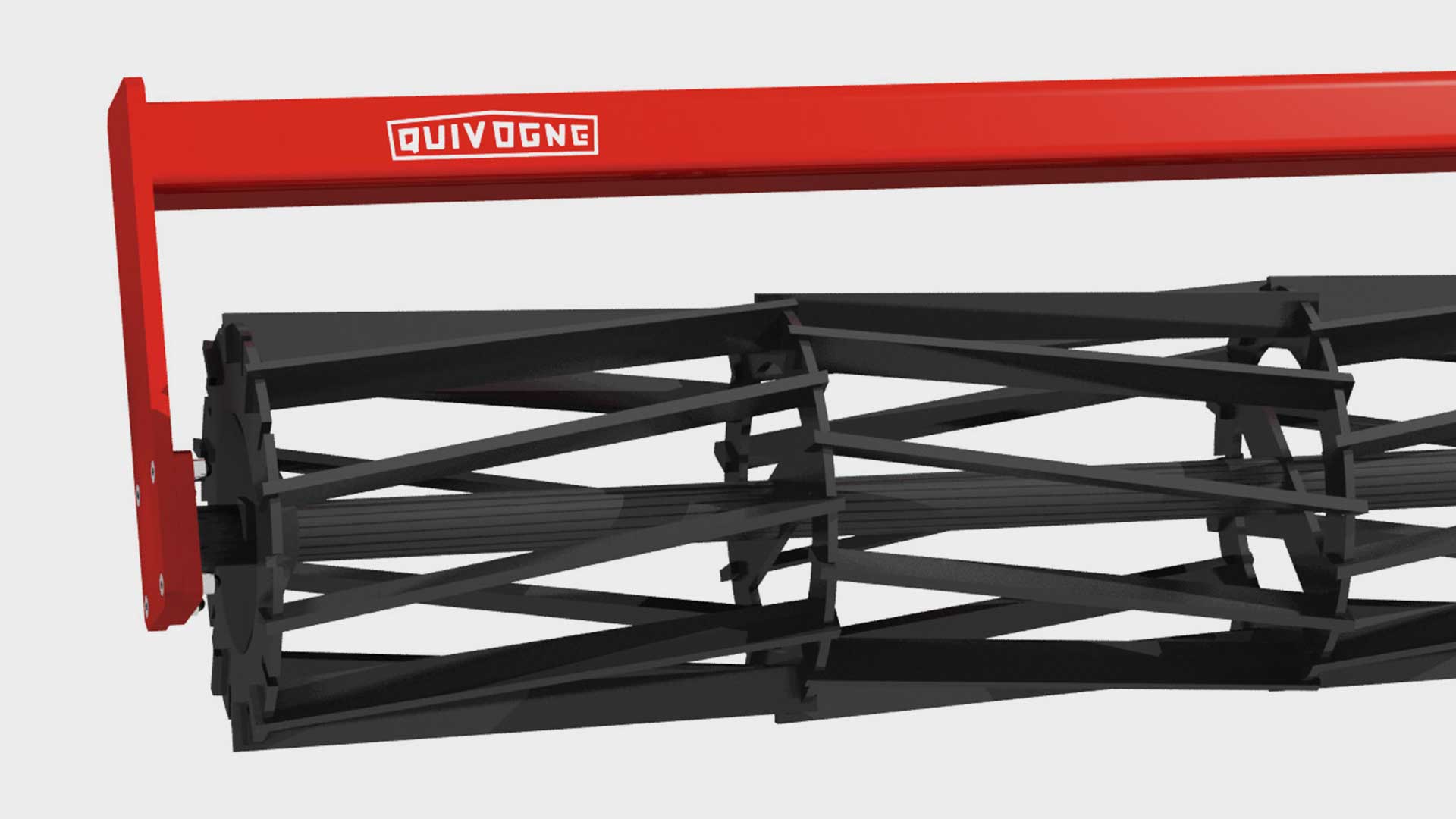

Z-roller ø 500 mm

L-roller ø 600 mm with scrapers

T-roller ø 600 mm with scrapers

Disc rows locking mechanism in standard version

Reinforced rear linkage (for trailed rollers)

Fleaux-Fleaux discs ø 810x10 mm

APVRS-FF combined with field roller ROLLMOT

U-roller ø 600 mm with scrapers

Crosskill roller ø 530 mm

Lamflex roller ø 590 mm

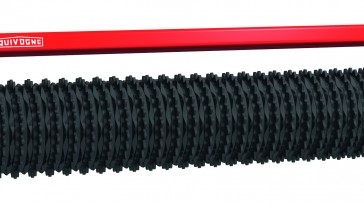

Cambridge roller ø 550 mm


Video APVRS-FF


Technical parameters of APVRS-FF

Model /

Discs (pcs)

Working width

(cm)

Soil pressure

(kg)

Bearing

(pcs)

Required power

(hp)

Weight

(kg)

Productivity

(ha/h)

APVRS-FF 32 450 258 10 270 - 300 8.256 3,0
APVRS-FF 36 500 250 10 300 - 330 8.995 3,2
APVRS-FF 40 560 235 10 330 - 360 9.230 3,5
APVRS-FF 44 620 218 16 360 - 390 9.590 3,8
APVRS-FF 48 675 206 16 390 - 420 9.845 4,2
APVRS-FF 52 730 195 16 420 - 450 10.100 4,5
APVRS-FF 56 785 190 20 450 - 480 10.615 4,9
APVRS-FF 60 840 185 24 480 - 510 11.130 5,2
APVRS-FF 64 895 178 24 510 - 540 11.385 5,5
APVRS-FF 68 950 171 24 540 - 600 11.640 5,8
