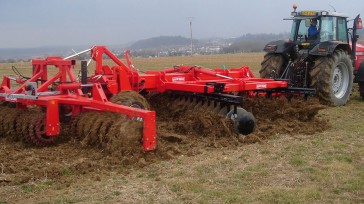

trailed heavy disc harrow / X-shaped
3,6 to 6,7 m working width / disc diameter Ø 660 & Ø 710 mm

Features

  • Extended profiles of the central frame and the frames of side sections increase the metal intensity of APAXR-MONO,
    which in turn allows soil penetration up to 23 cm under any weather conditions
  • Ideal for the mixing of crop residues, as well as the incorporation of manure
  • Recommended working speed 12 km/h
  • Arrangement of smooth and jagged discs as desired

Specifications of APAXR-MONO

  • Working width 3,6 to 6,7 m
  • Discs: Ø 660 x 6 mm. Disc spacing 230 mm or
    Ø 710 x 7 mm. Disc spacing 260 mm, at will
  • Middle steel frame 300 х 300 х 10 mm, outer frames 150 х 100 х 8 mm
  • Disc sections frame profile 160 х 120 х 8 mm
  • 2 transport wheels 520/50х17
  • Strengthened disc wheels, axle square Ø 80 mm, 6 fastening bolts
  • Triple waterproof conical steel bearings
  • Hydraulic locking of outer frames in transport position.
    Width in transport mode 2,55 m
  • 2 folding hydraulic cylinders with mechanical depth stop
  • 2 folding hydraulic cylinders for outer frames with relief valve
  • Discs notched at the front, smooth at the rear or alternated
  • Wide range of trailed rollers for any work conditions

Options

  • Bearing protection
  • Discs Ø 660 х 7, Ø 660 х 8 or Ø 710 х 8 mm jagged or smooth instead of standard discs
  • Rear hydraulic three-point linkage for trailed rollers
  • Wheels 520/50 х 17
  • Tube roller ø 600 mm
  • Heavy Crosskill roller ø 550 mm
  • Rollsteel roller ø 520 mm with scrapers
  • ROLLPRO roller ø 600 mm with scrapers

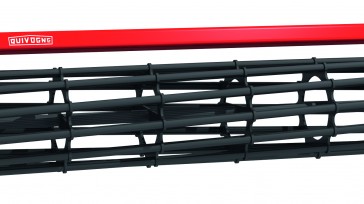

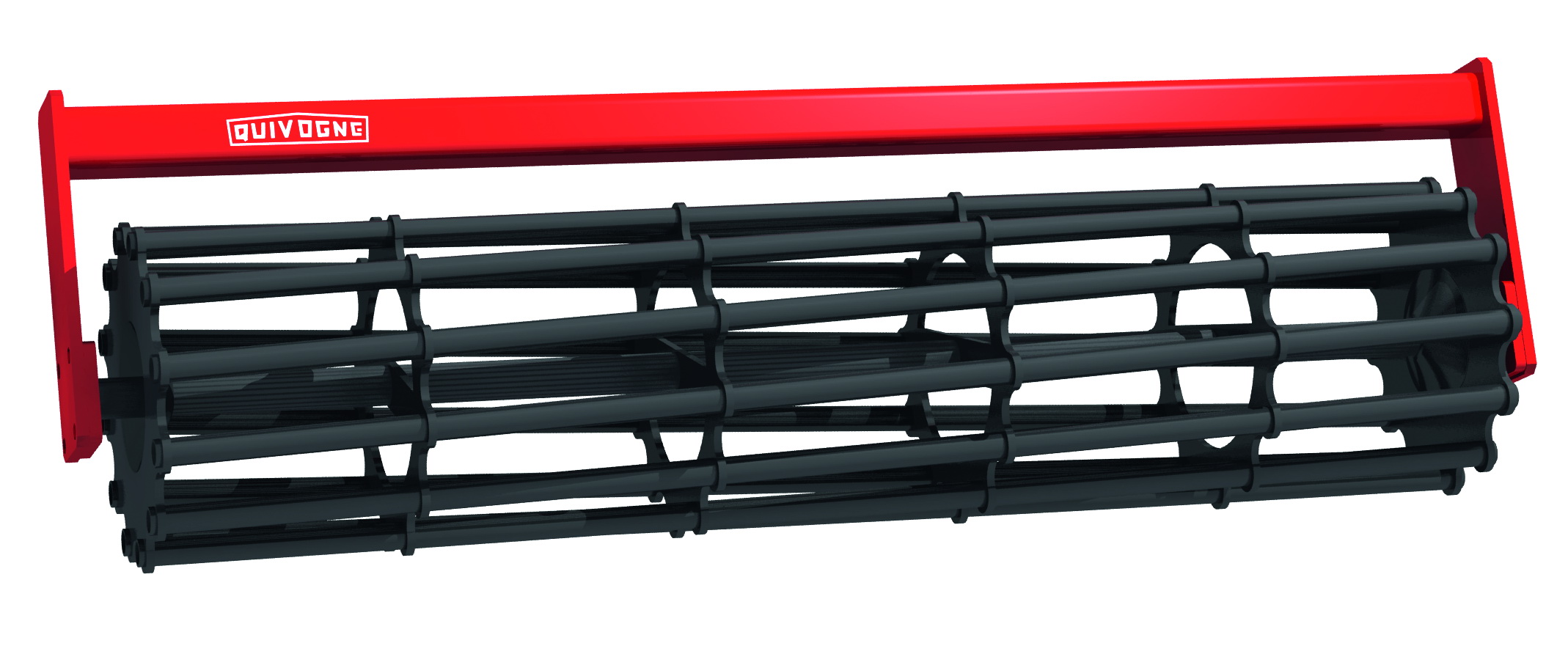

Tube roller ø 600 mm

Rollsteel roller ø 520 mm with scrapers

ROLLPRO roller ø 600 mm with scrapers

Heavy Crosskill roller ø 550 mm

Bearing protection

Jagged discs

Technical parameters of APAXR-MONO:

APAXR-MONO: Disc diameter Ø 710 х 7 mm. Disc spacing 260 mm

Model /

Discs (pcs)

Working

width (cm)

Bearings

(pcs)

Required power

(hp)

Weight

(kg)

Productivity

(ha/h)
APAXR-MONO 32 420 8 150 - 180 4.742 2,7 - 3,2
APAXR-MONO 36 470 10 170 - 200 5.026 3,0 - 3,6
APAXR-MONO 40 520 12 200 - 240 5.360 3,3 - 4,0
APAXR-MONO 44 570 12 240 - 280 5.594 3,5 - 4,4
APAXR-MONO 48 620 16 280 - 320 5.878 3,8 - 4,8
APAXR-MONO 52 670 16 320 - 360 6.468 4,4 - 5,5

APAXR-MONO: Disc diameter Ø 660 х 6 mm. Disc spacing 230 mm

Model /

Discs (pcs)

Working

width (cm)

Bearings

(pcs)

Required power

(hp)

Weight

(kg)

Productivity

(ha/h)
APAXR-MONO 32 360 8 140 - 170 4.470 2,5 - 3,0
APAXR-MONO 36 400 10 160 -190 4.720 3,0 - 3,6
APAXR-MONO 40 440 12 180 - 210 5.020 3,3 - 4,0
APAXR-MONO 44 490 12 200 - 240 5.220 3,5 - 4,4
APAXR-MONO 48 540 16 240 - 280 5.470 3,8 - 4,8
APAXR-MONO 52 580 16 280 - 320 6.026 4,1 - 5,1
APAXR-MONO 56 620 16 320 - 360 6.326 4,4 - 5,5
