Semi-Mounted reversible plough
5 to 9 furrows

Semi-Mounted reversible plough ATLANT 180

Field of application / advantages

  • With 5 to 9 furrows the Quivogne ATLANT 180 is the right choice for large-sized farms.
  • Effective mechanical weed control by depriving them from light.
  • Mechanical control of soil pests.
  • Soil warms up faster and is better aerated, giving higher yields of crops requiring warmth.
  • Reduced risk of infection of subsequent crops by fusaria. The residue of the previous crop is entirely removed.
  • Recommended working speed 6 - 8 km/h

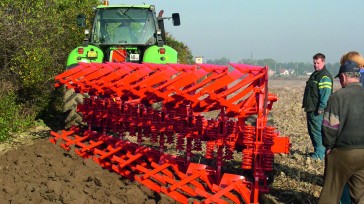

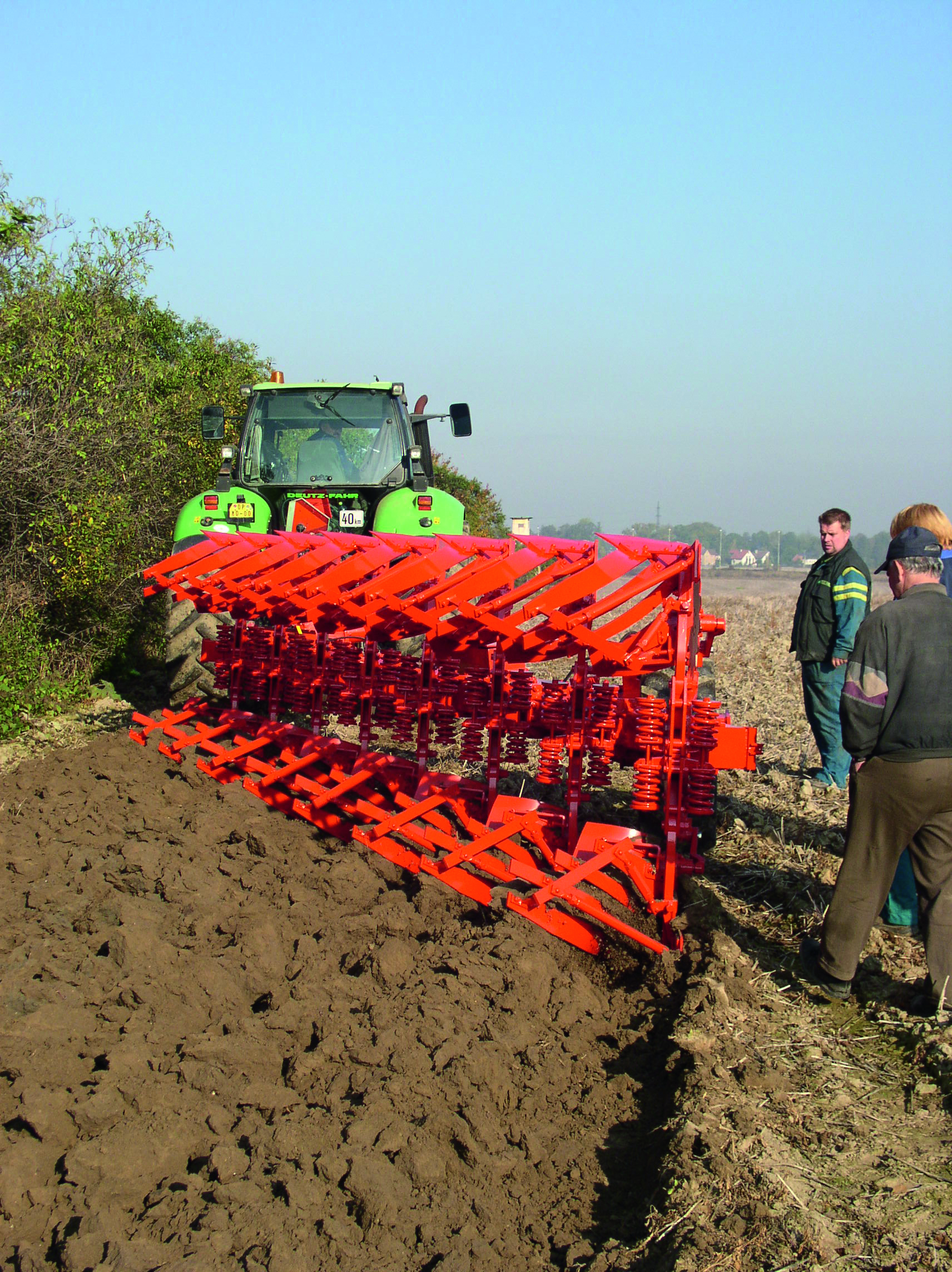

Semi-Mounted reversible plough ATLANT 180 working process
Semi-Mounted reversible plough ATLANT 180 lateral view
Semi-Mounted reversible plough ATLANT 180 rear view

Product features

  • For tractors up to 360 hp
  • 5 to 9 furrows
  • Interbody clearance 100 cm
  • Mechanically adjustable working width: 35 - 40 - 45 cm
  • Underframe clearance 80 cm
  • Working depth up to 35 cm

Standard features

  • Three point linkage mounted: Cat. 2/36 or 3/36
    - Hydraulic turnover device with 2 turning cylinders and transport lock
  • Hydraulic front furrow adjustment
  • Box section frame 180x180x10 mm
  • Universal bodies QR 400 with reversible point share and tailpiece
  • Shearbolt stone protection
  • Automatic steered centre mounted wheel 400/70-20
  • 2 stands, warning plate

Options

  • Plough body QM 400, QV 9 or QV 28
  • Manure skimmers or Trashboards
  • Landside knife or disc coulter Ø 500 mm
  • Ploughshare extender
  • Flotation tyre 500/45-20
  • Furrow press arm, hydraulic
  • NON-STOP stone protection with spiral springs

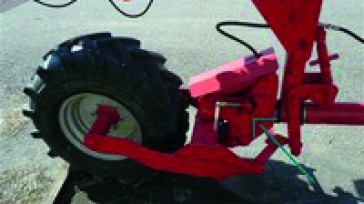

Flotation tyre 500/45-20

Flotation tyre 500/45-20

Top quality of work!

Top quality of work!

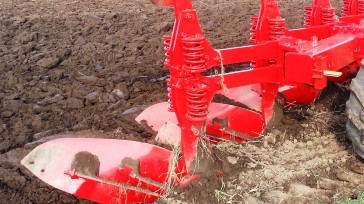

Fully automatic NON-STOP stone protection

Fully automatic NON-STOP stone protection

Video of ATLANT

ATLANT 180

Model Number of
furrows		 Working width
per furrow (cm)		 Interbody
clearance (cm)		 Tractor (hp) Weight
(kg)
ATLANT 180 - 5 5 35 - 40 - 45 100 140 - 200 2.790
ATLANT 180 - 6 (5+1) 6 (5+1) 35 - 40 - 45 100 180 - 240 3.150
ATLANT 180 - 6 6 35 - 40 - 45 100 180 - 240 3.146
ATLANT 180 - 7 (6+1) 7 (6+1) 35 - 40 - 45 100 230 - 290 3.450
ATLANT 180 - 8 (6+1+1) 8 (6+1+1) 35 - 40 - 45 100 270 - 300 3.730
ATLANT 180 - 9 (6+1+1+1) 9 (6+1+1+1) 35 - 40 - 45 100 300 - 360 4.000
