TURBOCOMBINATOR G

Trailed combined cultivator, Universal Toolbar G, 2x TURBOCOMBINATOR KS
Hydraulically foldable / Working width 8 and 10 m

One Toolbar - many options

• The universal toolbar G offers the possibility to mount two QUIVOGNE implements, 4 or 5 m, via three point linkage: Combined cultivators, compact disc harrows and stubble grubbers.
• The mounted implements can be used seperately without the toolbar with less powerful tractors.

TURBOCOMBINATOR KS Field of application / advantages

• The TURBOCOMBINATOR KS was designed for preparing a finely crumbled, well-reconsolidaded seedbed with a consistent depth in a single pass.

Features

• Loosening the packed tractor tracks
• Levelling of the soil
• Adaption to the soil contour and consistent working depth through dividing the working width into several sections.
• Loosening of the soil with 2 or 3-row tine sections in working depth 2-12 cm
• Recommended working speed 10-12 km/h

---

TURBOCOMBINATOR G 800 work process

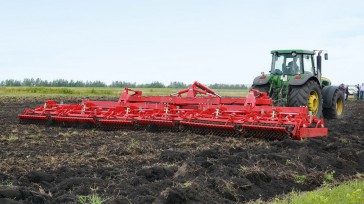

TURBOCOMBINATOR G 1000

TURBOCOMBINATOR G 1000 transport position

---

Uniform, even seedbed

Through the application of the Quivogne TURBOCOMBINATOR G the seedbed will be evenly prepared: for the optimal, straight growth of the seedlings. Therefore a higher yield is possible.

Uneven, rough seedbed: uneven growth of the seedlings = stuntet growth	Even seedbed: optimal, straight growth of the seedlings = higher yield



---

Product Features

• Working width 8 m | 10 m
• For tractors 220 - 470 HP
• Square profile frame with stable spring steel carrier arms
• Universal toolbar G: Universal toolbar for mounting of combined cultivators, compact disc harrows and stubble grubbers
• Transport width 3 m

Universal Toolbar G

• Drawbar with drawbar eye Ø 51 mm or Scharmüller K80 ball trailer coupling
• Chassis with tyres: 560/45-R22,5 and one lifting cylinder
• 2 hydraulic folding cylinders
• 2x rear three point linkage Cat. 3:
  8m: 2x TURBOCOMBINATOR KS 400
  10m: 2x TURBOCOMBINATOR KS 500
• Adjustable, spring loaded track eradicators (3+3 pcs. with duckfoot shares)
• Warning plates and lighting

Universal toolbar G

TURBOCOMBINATOR KS

• Flat bar crumbler Ø 330 mm in the front
• Adjustable, spring loaded levelling board behind 1st crumbler, rigid
• Parallelogram-suspended tine sections: 2- or 3-row tine sections with various types of shares (see price table)
• Flat bar crumbler Ø 330 mm in the middle
• Adjustable, spring loaded levelling board behind 2nd crumber, rigid
• Tube bar crumbler Ø 400 mm at the rear (or Crosskill roller Ø 400 mm optional)
• Height adjustable side deflectors

Options

• Track eradicators with chisels instead of duckfoot shares
• Jagged front levelling board, rigid
• Hydraulic adjustment of the standard levelling boards
• Hydraulic depth adjustment of the tine sections
• Heavy CrosskilL-roller Ø 400 mm

---

TURBOCOMBINATOR G work process

TURBOCOMBINATOR G 1000 work process

Universal toolbar G folded

2 rows of tines with shear bolt protection duckfoot shares 265 mm

2 rows of strengthened spring S-tines duckfoot shares 265 mm

2 rows of tines NON-STOP protection duckfoot shares 265 mm

3 rows of straight spring tines with reversible points

Heavy CROSSKILL-roller Ø 400 mm

Track eradicators with reversible points

Jagged levelling board front, rigid

Hydraulic adjustment of the standard levelling boards

Hydraulic depth adjustment ot the tine sections

---

TurboCombinator G 1000: with 2 x TURBOCOMBINATOR KS 500 (2 x 500 cm)

Model	Working width (cm)	Tines (pcs.)	Working sections x width (cm)	Weight (kg)	Required power (HP)	Productivity (ha/h)
2 rows of tines with shear bolt protection duckfoot shares 265 mm	2 x 500	40 + 6	4 x 150 2 x 200	7.655	280 - 470	9,2
2 rows of strengthened spring S-tines duckfoot shares 265 mm	2 x 500	40 + 6	4 x 150 2 x 200	7.705	280 - 470	9,2
2 rows of tines NON-STOP protection duckfoot shares 265 mm	2 x 500	40 + 6	4 x 150 2 x 200	7.755	280 - 470	9,2
3 rows of straight spring tines with reversible points	2 x 500	120 + 6	4 x 150 2 x 200	7.805	280 - 470	9,2

TurboCombinator G 800: with 2 x TURBOCOMBINATOR KS 400 (2 x 400 cm)

Model	Working width (cm)	Tines (pcs.)	Working sections x width (cm)	Weight (kg)	Required power (HP)	Productivity (ha/h)
2 rows of tines with shear bolt protection duckfoot shares 265 mm	2 x 400	32 + 6	4 x 200	6.524	220 - 320	7,4
2 rows of strengthened spring S-tines duckfoot shares 265 mm	2 x 400	32 + 6	4 x 200	6.574	220 - 320	7,4
2 rows of tines NON-STOP protection duckfoot shares 265 mm	2 x 400	32 + 6	4 x 200	6.624	220 - 320	7,4
3 rows of straight spring tines with reversible points	2 x 400	96 + 6	4 x 200	6.674	220 - 320	7,4
