Subsoiler / double beam / rigid
Working width 2,5 - 4 m / Working depth max. 60 cm

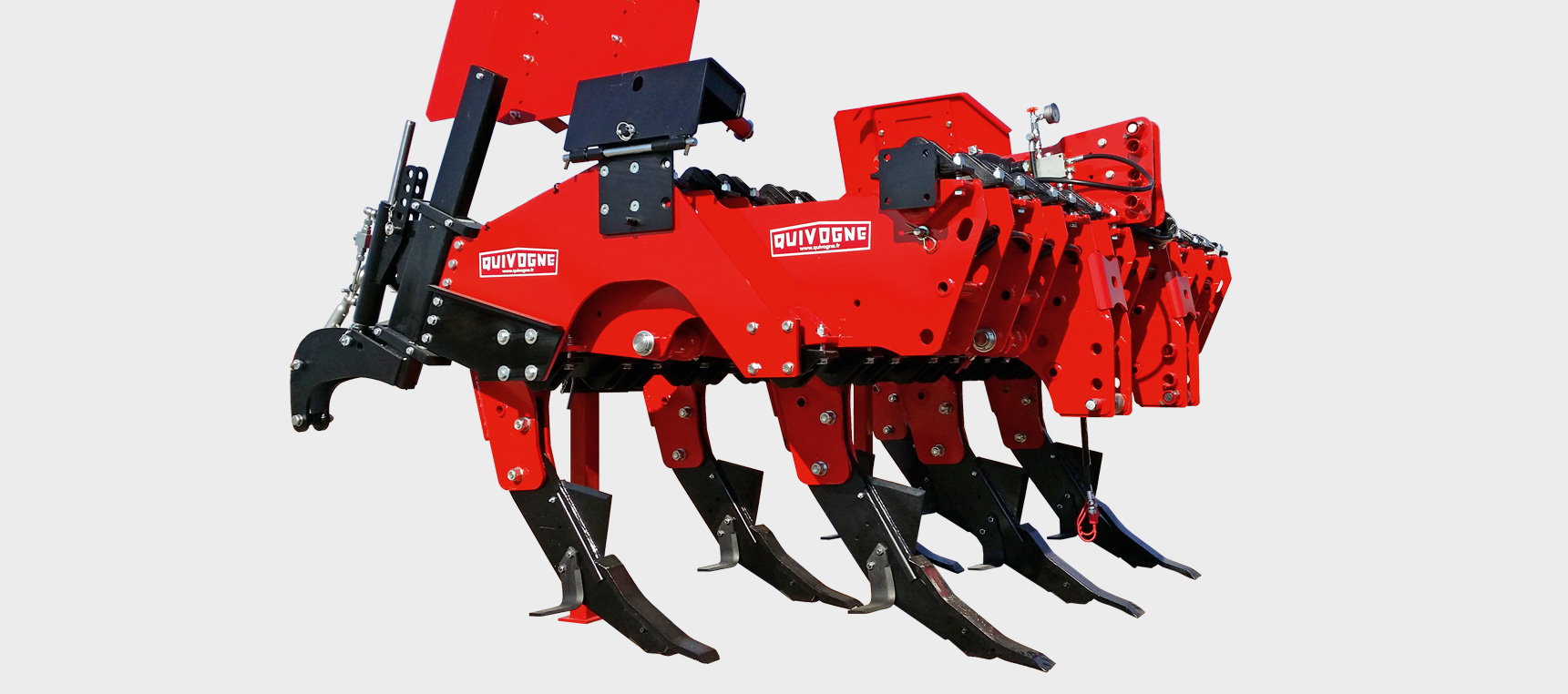

Untergrundlockerer SSDR NON-STOP mit hydropneumatischer NON-STOP Überlastsicherung

Field of application / advantages

  • Hydropneumatic NON-STOP stone protection in series
  • Intense loosening of deep soil areas with large and sturdy tines.
  • Excellent crumbling and mixing of the topsoil with the trailing roller.
  • The sturdy framework and the 35 mm tines with their large tine spacing guarantee blockage-free working up to 60 cm working depth.
  • Through additional cutting knifes rough clods of soil will be also crumbled.
  • Wing shares ensure an optimal workflow over the complete working depth.

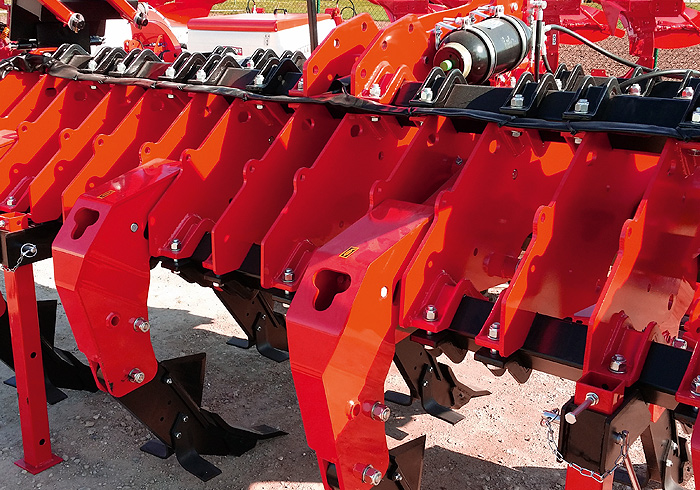

NON-STOP tines, nitrogen ball

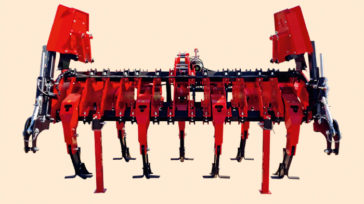

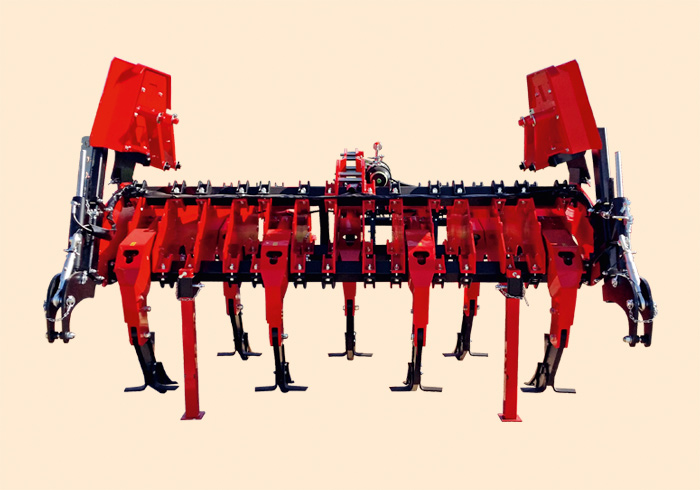

Rear view, without roller


Product features

  • Working width 2,5 - 4 m
  • For tractors 190 - 350 HP
  • Working depth 60 cm, adjustable via the trailing roller
  • Double beam construction: 1st tine row-> 2nd tine row -> trailing roller
  • Tine thickness 35 mm

Standard features

  • Three point linkage Cat. 3 and 4
  • Straight tines with gradual penetration angle, wing shares, clod crushers and quick-release reversible tips 80 mm
  • Stands (2 pcs.)
  • Hydropneumatic NON-STOP stone protection
  • With hydraulically adjustable double spiked roller or double wedge ring roller

Options

  • Three point linkage for KIROVETS tractors
  • Depth guidance wheels 500 x 150
    Depth guidance wheels 500 x 225
  • Cutting plates, carbide plates
  • Quick-release reversible tips 80 mm, carbide plated
  • Depth gauge
  • Side deflectors fix or adjustable, manually or hydraulically foldable
  • Twin double roller with waved discs Ø 500/500 mm
  • Street lighting

SSDR NON-STOP: with hydraulically adjustable double spiked roller

Model Working width (cm) Tines (pcs.) Tine spacing (mm) Weight (kg) Required power (HP)
SSDR NON-STOP 5/250 A 250 5 480 2.675 190 - 280
SSDR NON-STOP 7/300 A 300 7 430 3.159 210 - 310
SSDR NON-STOP 9/400 A 400 9 440 4.063 250 - 350

SSDR NON-STOP: with hydraulically adjustable double wedge ring roller Ø 580 mm

Model Working width (cm) Tines (pcs.) Tine spacing (mm) Weight (kg) Required power (HP)
SSDR NON-STOP 5/250 B 250 5 480 2.943 190 - 280
SSDR NON-STOP 7/300 B 300 7 430 3.475 210 - 310
SSDR NON-STOP 9/400 B 400 9 440 4.469 250 - 350
