Trailed stubble cultivator / 3 rows
working width 4 - 6,4 m / hydraulically foldable

Field of application / Advantages

  • The stubble cultivator BLACKBEAR EVO was designed for stubble cultivation and deep tillage at higher working speeds.
  • The large tine spacing (> 60 cm) ensures a blockage-free workflow also with a greater amount of residues.
  • Excellent soil mixing through 3 row arrangement of the tines.
  • The standard levelling discs ensure the crumbling of the soil, an optional, afterwards mounted trailing roller will be more effective.
  • Recommended working speed: Stubble cultivation: 10 - 13 km/h Deep tillage: 5 - 8 km/h

Advantages of the curved BLACKBEAR tines

  • easy soil penetration on hard and stony fields
  • even working depth
  • no horizontal axle weights
  • replaceable chisel tips and wing shares
  • side deflectors for optimal flow of soil

Transport position

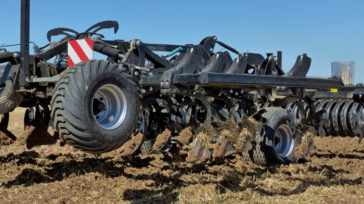

Trailing roller, chassis, levelling discs

Levelling discs, tine sections

Tines with spiral spring NON-STOP stone protection


Product features

  • Working width 4 - 6,4 m
  • For tractors 200 - 450 HP
  • Working depth stubble cultivation: up to 7 cm, working depth soil loosening: up to 30 cm
  • Triple beam main frame profile: 150 x 100 x 8 mm
  • Line distance: 310 mm
  • Distance between disc sections: 750 mm
  • Frame ground clearance: 850 mm
  • 3 tine sections for soil loosening
  • Levelling discs after tine sections
  • Transport width 3 m

Standard features

  • Hydraulically adjustable drawbar with lower link connection Cat. 3
  • Curved BLACKBEAR-tines, height 720 mm with replaceable chisel tips, with spiral spring stone protection
  • Mechanically adjustable beam with levelling discs Ø 450 mm, mounted on rubber stone protection elements
  • 2 folding cylinders with mechanical transport lock
  • 2 wheel chassis with tyres 520/50x17, 90 mm square axle with 6 bolts
  • 2 stands

Options

  • Drawbar with nitrogen shock absorption
  • Drawbar with drawbar eye Ø 51 mm
  • Rear three point linkage Cat. 2 (for operation with trailing rollers) with hyraulic hoses
  • Tines with shear bolt stone protection
  • Carbide plated chisel tips
  • Wing shares 240 or 340 mm, also carbide plated for stubble cultivation
  • Tyres 560/45x22,5 instead of 520/50x17
  • Depth guidance wheels 400/60x15,5, mechanically or hydraulically adjustable
  • Hydraulic adjustment of the levelling discs
  • Pneumatic brake
  • Warning plates and lighting
  • Scharmüller K80 ball trailer coupling

BLACKBEAR EVO: with shear bolt stone protection, without trailing roller

Model Working width (cm) Tines (pcs.) Levelling discs (St.) Weight (kg) Required power (HP)
BLACKBEAR EVO 400 SB 400 13 10 3.155 200 - 280
BLACKBEAR EVO 460 SB 460 15 12 3.575 230 - 320
BLACKBEAR EVO 520 SB 520 17 12 3.695 260 - 360
BLACKBEAR EVO 600 SB 580 19 14 3.815 290 - 410
BLACKBEAR EVO 650 SB 640 21 16 3.985 320 - 450

BLACKBEAR EVO: with spiral spring NON-STOP stone protection, without trailing roller

Model Working width (cm) Tines (pcs.) Levelling discs (St.) Weight (kg) Required power (HP)
BLACKBEAR EVO 400 SF 400 13 10 3.155 200 - 280
BLACKBEAR EVO 460 SF 460 15 12 3.575 230 - 320
BLACKBEAR EVO 520 SF 520 17 12 3.695 260 - 360
BLACKBEAR EVO 600 SF 580 19 14 3.815 290 - 410
BLACKBEAR EVO 650 SF 640 21 16 3.985 320 - 450
