Medium-heavy rotary harrow / rigid
Working width 2,5 and 3 m / Working depth max. 15 cm

Medium-heavy rotary harrow PROSOIL M

Field of application / advantages

  • The rotary harrow PROSOIL M was designed for intense agriculture with more powerful tractors on hard and stony soils.
  • Optimal seed bed preparation: fine crumbled structure for efficient sowing.
  • Low maintenance effort, high reliability over many years.
  • Recommended working speed: 5 - 8 km/h

PROSOIL M with tooth packer roller Ø 500 mm

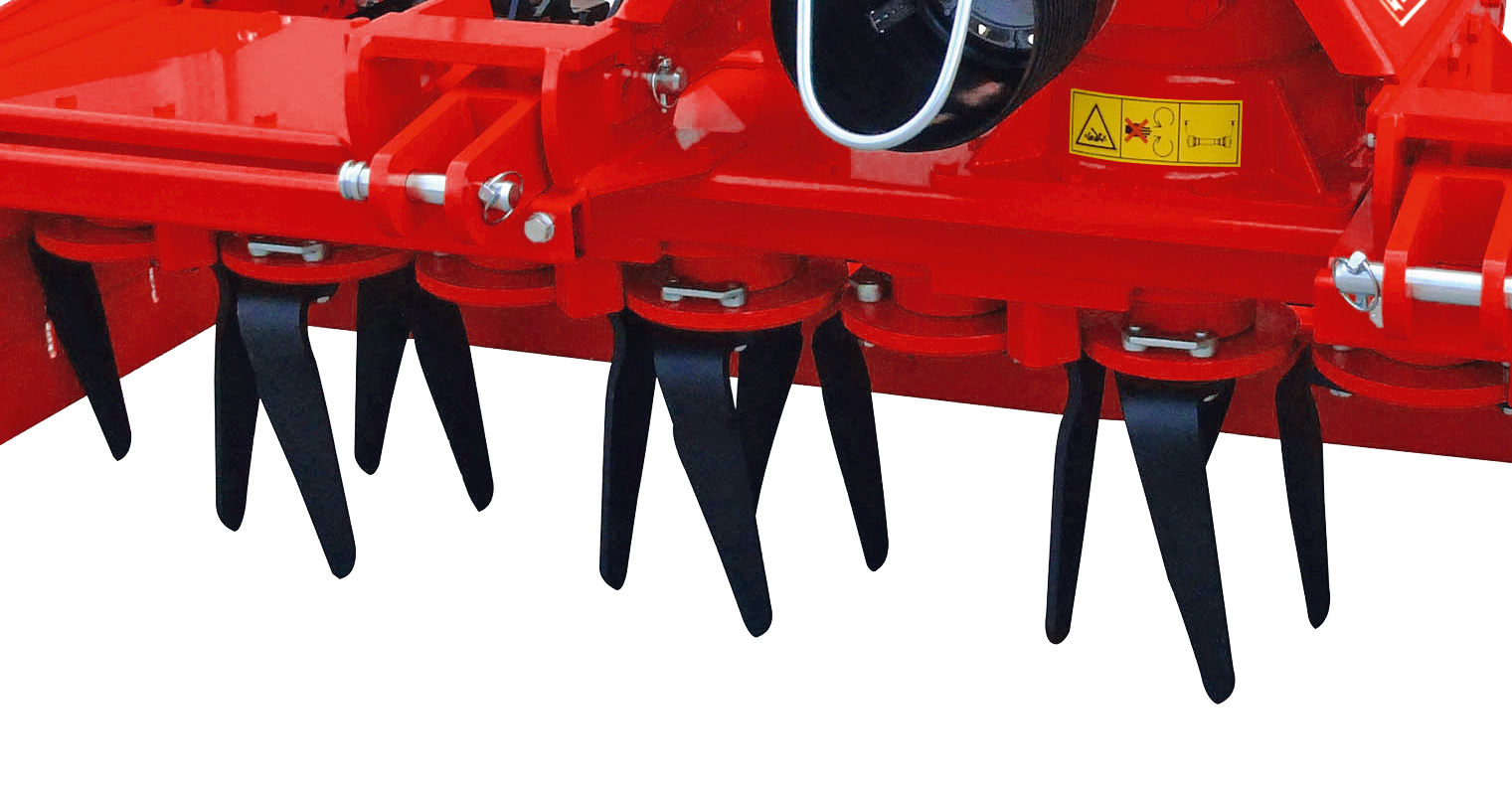

Rotor units

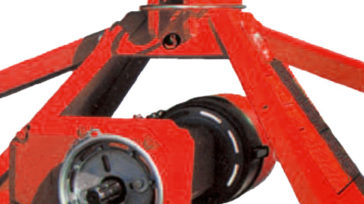

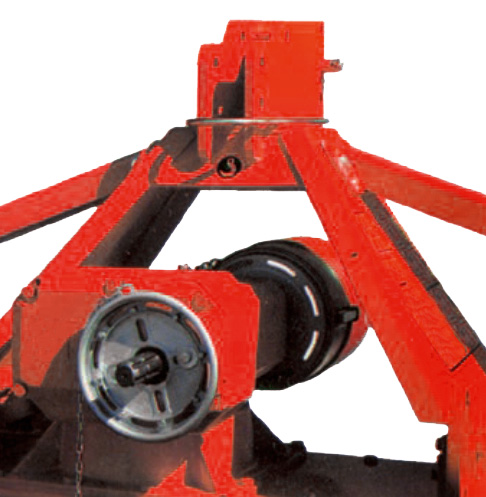

PTO through drive

Product features

  • Working width 2,5 and 3 m
  • Working depth up to 15 cm
  • For tractors 65 - 130 HP
  • PTO speed: 540 rpm
  • Rotor count: 10 - 12
  • Rotor speed: 325 -260 rpm
  • Special knive-shaped tines for less power requirement

Standard features

  • Three point linkage Cat. 2 and 3
  • Sturdy gearbox w. interchangeable gearwheels (gear wheel pairing 17/19 Zähne)
  • High-strength gear case, plate thickness 8 mm
  • Round knife holders with taper roller bearings and knives 330 x 15 mm
  • Tube roller, spiral roller or tooth packer roller with adjustment via locking pins
  • Rear impact beam, mounted before the trailing roller, adjustable via crank handle
  • Spring loaded deflector boards left/right
  • Front PTO shaft with sliding clutch 1 3/8“, 6 teeth

Options

  • Track eradicators incl. support frame
  • Hydraulic linkage for sowing machine
  • Hydraulic roller adjustment
  • PTO through drive
  • Tine quick release system
  • Front stone protection

Rotor unit

Tine quick release system

Hydraulic linkage for sowing machine


PROSOIL M: with tube roller Ø 460 mm

Model Working width (cm) Rotors / Tines (pcs.) Required power (HP) Weight (kg) Productivity (ha/h)
PROSOIL M 250 R 250 10/20 65 - 90 1.010 1,4 - 2,3
PROSOIL M 300 R 300 12/24 80 - 110 1.190 1,8 - 2,7

PROSOIL M: with spiral roller Ø 480 mm

Model Working width (cm) Rotors / Tines (pcs.) Required power (HP) Weight (kg) Productivity (ha/h)
PROSOIL M 250 L 250 10/20 65 - 90 1.020 1,4 - 2,3
PROSOIL M 300 L 300 12/24 80 - 110 1.210 1,8 - 2,7

PROSOIL M: with tooth packer roller Ø 500 mm

Model Working width (cm) Rotors / Tines (pcs.) Required power (HP) Weight (kg) Productivity (ha/h)
PROSOIL M 250 Z 250 10/20 85 - 110 1.250 1,4 - 2,3
PROSOIL M 300 Z 300 12/24 100 - 130 1.370 1,8 - 2,7
