Mounted/trailed combined cultivator/ Hydraulically foldable
Working width 4 - 6 m

Combined cultivator TURBOCOMBINATOR K

Field of application / advantages

  • The TURBOCOMBINATOR K was designed for preparing a finely crumbled, well-reconsolidaded seedbed with a consistent depth in a single pass.

Features

  • Loosening the packed tractor tracks
  • Levelling of the soil
  • Loosening of the soil with 2 or 3-row tine sections
  • Working depth 2-12 cm
  • Levelling of the soil after loosing
  • Seedbed reconsolidation
  • Recommended working speed 10-12 km/h

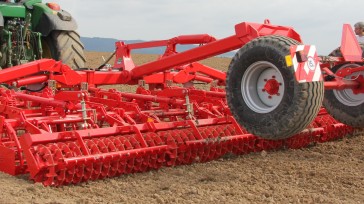

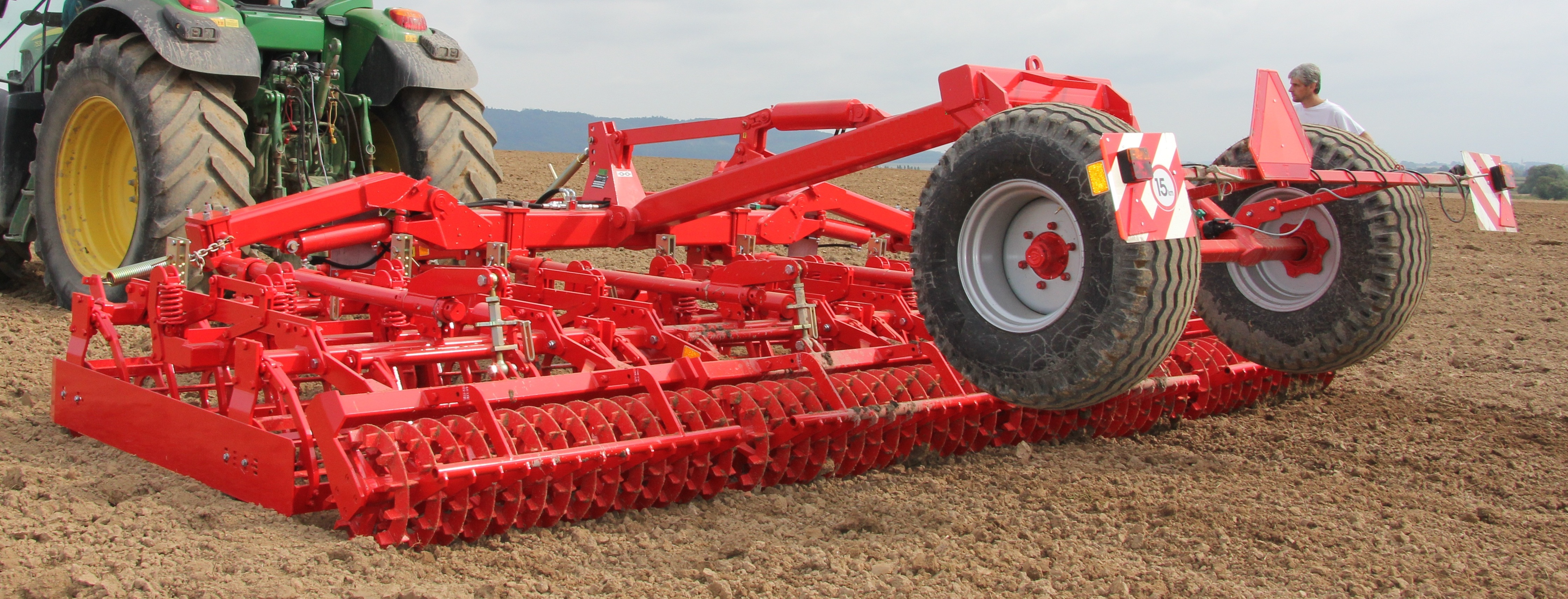

Rear chassis, side deflectors, warning plates and lighting

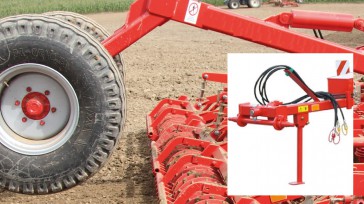

Transport position, with rear chassis and lower link connection

Hight adjustable side deflectors


Product features

  • Working width 4 to 6 m
  • For tractors 120 - 245 HP
  • Square profile frame with stable spring steel carrier arms
  • Transport width under 3 m

Standard features

  • Three point linkage Cat. 3
  • Adjustable, spring loaded track eradicators (2+2 pcs. with duckfoot shares)
  • 2 hydraulic folding cylinders

Construction

  • Flat bar crumbler Ø 330 mm in the front

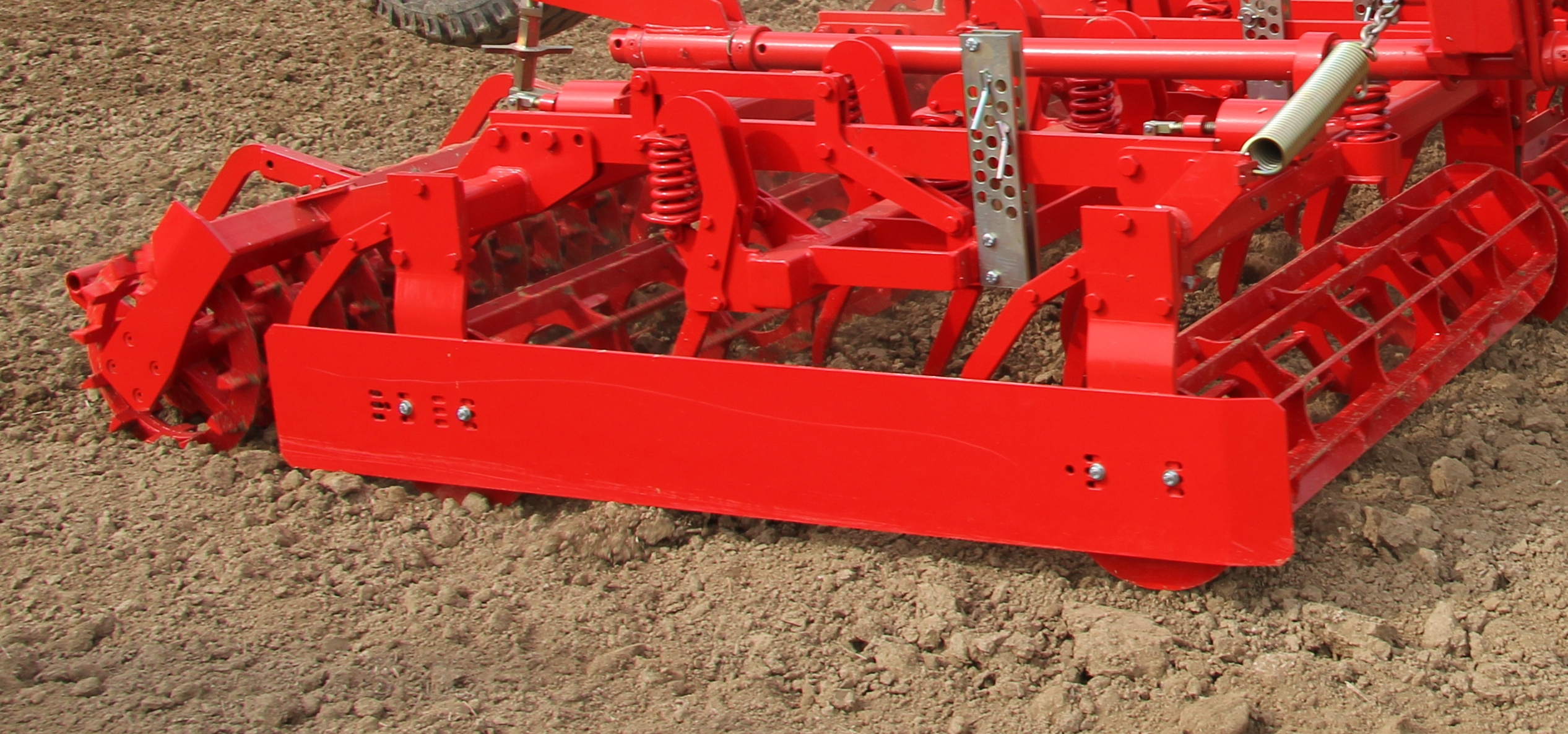

  • Adjustable, spring loaded levelling board behind 1st crumbler, rigid
  • Parallelogram-suspended tine sections: 2- or 3-row tine sections with various types of shares (see price table)
  • Flat bar crumbler Ø 330 mm in the middle
  • Adjustable, spring loaded levelling board behind 2nd crumber, rigid
  • Tube bar crumbler Ø 400 mm at the rear (or Crosskill-roller Ø 400 mm optional)

Options

  • Rear chassis with tyres:
    - Working width 4 m: 10,0/75-15,3
    - Working width 5 and 6 m: 19,0/45-17
    incl. drawbar with lower link connection (with foldable stand) instead of three point linkage
  • Track eradicators with chisels instead of duckfoot shares
  • Jagged front levelling board, rigid
  • Hydraulic adjustment of the standard levelling boards

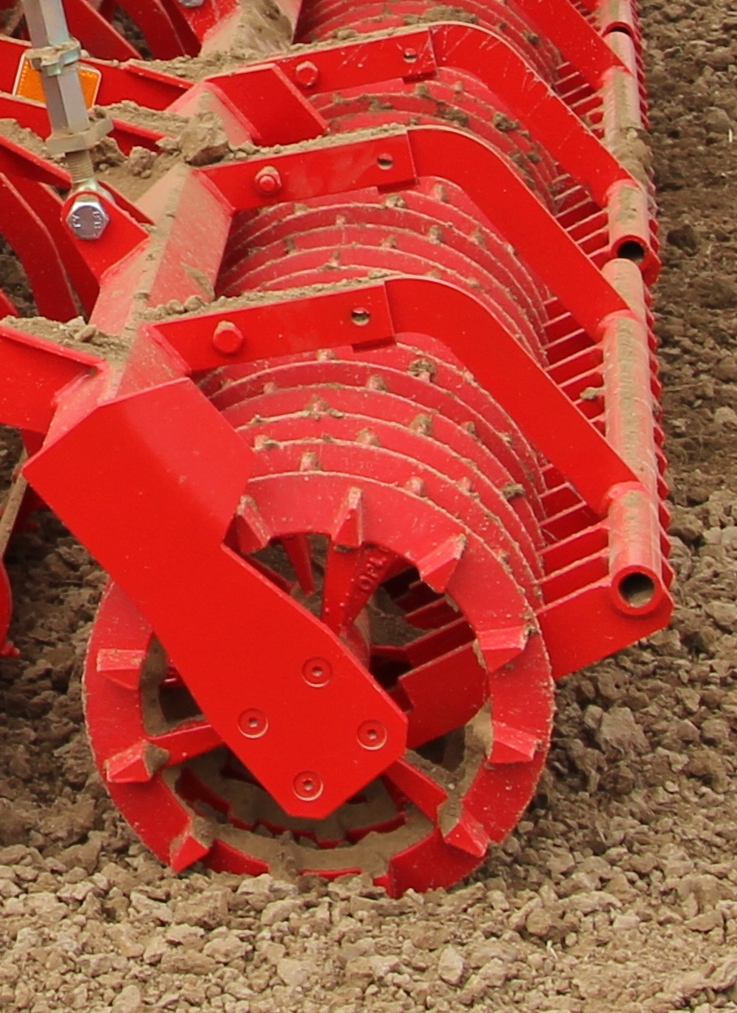

  • Heavy CrosskilL-roller Ø 400 mm
  • Height adjustable side deflectors
  • Warning plates and lighting

2 rows of tines shear bolt protection duckfoot shares 265 mm

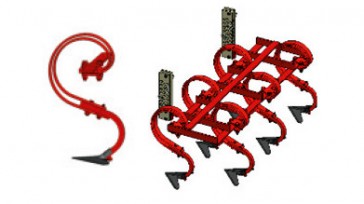

2 rows of strengthened spring S-tines duckfoot shares 265 mm

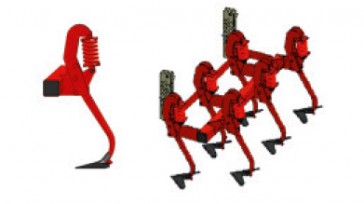

2 rows of tines NON-STOP protection duckfoot shares 265 mm

3 rows of straight spring tines with reversible points

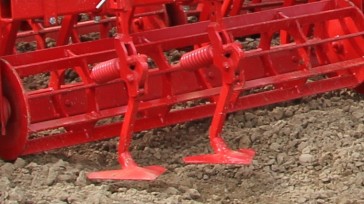

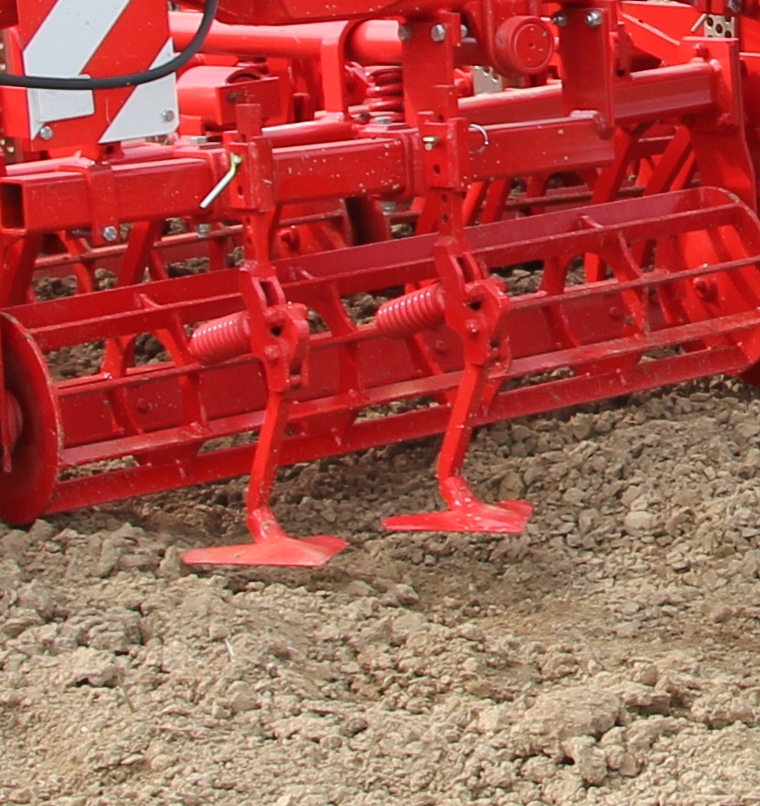

Adjustable, spring loaded track eradicators (2+2 pcs. with duckfoot shares)

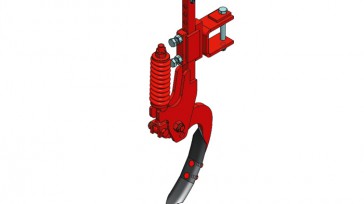

Track eradicators with reversible points

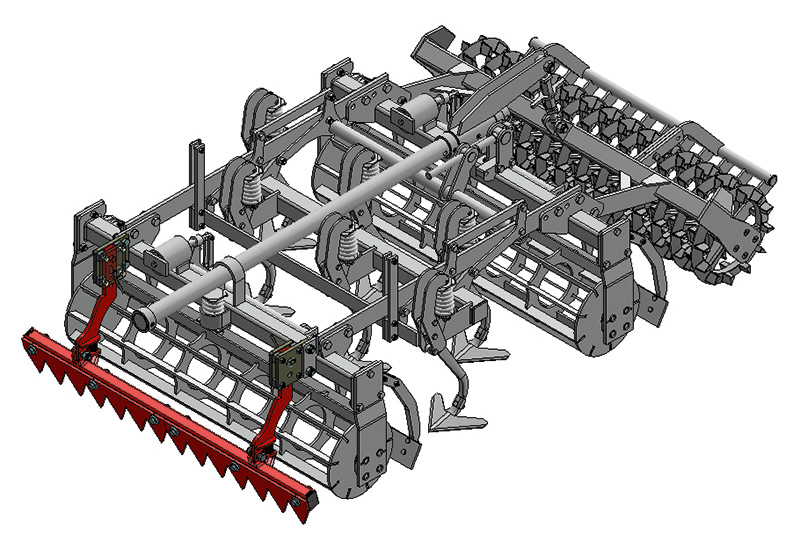

Jagged levelling board front, rigid

Hydraulic adjustment of the standard levelling boards

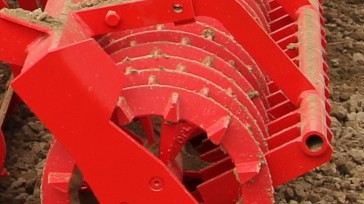

Heavy CROSSKILL-roller Ø 400 mm

Rear chassis with tyres 10,0/75-15,3 incl. drawbar with lower link connection


TURBOCOMBINATOR K 400: with 2 flat bar crumblers Ø 330 mm and tube bar crumbler Ø 400 mm

Model Working width (cm) Tines (pcs.) Working sections x width (cm) Required power (HP) Weight (kg) Productivity (ha/h)
2 rows of tines
shear bolt protection
duckfoot shares 265 mm
400 16 + 4 2 x 200 120 - 160 1.540 3,7
2 rows of strengthened
spring S-tines
duckfoot shares 265 mm
400 16 + 4 2 x 200 120 - 160 1.590 3,7
2 rows of tines
NON-STOP protection
duckfoot shares 265 mm
400 16 + 4 2 x 200 120 - 160 1.640 3,7
3 rows of
straight spring tines
with reversible points
400 48 + 4 2 x 200 120 - 160 1.690 3,7

TURBOCOMBINATOR K 500: with 2 flat bar crumblers Ø 330 mm and tube bar crumbler Ø 400 mm

Model Working width (cm) Tines (pcs.) Working sections x width (cm) Required power (HP) Weight (kg) Productivity (ha/h)
2 rows of tines
shear bolt protection
duckfoot shares 265 mm
500 20 + 4 2 х150 / 1 х 200 145 - 215 1.720 4,6
2 rows of strengthened
spring S-tines
duckfoot shares 265 mm
500 20 + 4 2 х150 / 1 х 200 145 - 215 1.770 4,6
2 rows of tines
NON-STOP protection
duckfoot shares 265 mm
500 20 + 4 2 х150 / 1 х 200 145 - 215 1.860 4,6
3 rows of
straight spring tines
with reversible points
500 60 + 4 2 х150 / 1 х 200 145 - 215 1.900 4,6

TURBOCOMBINATOR K 600: with 2 flat bar crumblers Ø 330 mm and tube bar crumbler Ø 400 mm

Model Working width (cm) Tines (pcs.) Working sections x width (cm) Required power (HP) Weight (kg) Productivity (ha/h)
2 rows of tines
shear bolt protection
duckfoot shares 265 mm
600 24 + 4 4 x 150 165 - 245 2.250 5,5
2 rows of strengthened
spring S-tines
duckfoot shares 265 mm
600 24 + 4 4 x 150 165 - 245 2.320 5,5
2 rows of tines
NON-STOP protection
duckfoot shares 265 mm
600 24 + 4 4 x 150 165 - 245 2.390 5,5
3 rows of
straight spring tines
with reversible points
600 72 + 4 4 x 150 165 - 245 2.450 5,5
