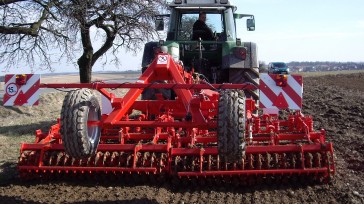

Combined cultivator TURBOCOMBINATOR KS

The TURBOCOMBINATOR KS was designed for preparing a finely crumbled, well-reconsolidaded seedbed with a consistent depth in a single pass.

Loosening the packed tractor tracks
Levelling of the soil
Loosening of the soil with 2 or 3-row tine sections in working depth 2-12 cm
Recommended working speed 10-12 km/h

Chassis, warning plates with lighting

Track eradicator and flat bar crumbler Ø 330 mm

Working width 3 and 4 m
For tractors 80 - 160 HP
Square profile frame with stable spring steel carrier arms
Transport width 3 and 4 m

Three point linkage Cat. 3
Adjustable, spring loaded track eradicators (2+2 pcs. with duckfoot shares)
Side deflectors
Warning plates and lighting

Flat bar crumbler Ø 330 mm in the front
Adjustable, spring loaded levelling board behind 1st crumbler, rigid
Parallelogram-suspended tine sections: 2- or 3-row tine sections with various types of shares (see price table)
Flat bar crumbler Ø 330 mm in the middle
Adjustable, spring loaded levelling board behind 2nd crumber, rigid
Tube bar crumbler Ø 400 mm at the rear (or CROSSKILL-roller Ø 400 mm optional)

Rear transport chassis with tyres 10,0/75-15,3, incl. drawbar with lower link connection (with foldable stand) instead of three point linkage
Track eradicators with chisels instead of duckfoot shares
Jagged front levelling board, rigid
Hydraulic adjustment of the standard levelling boards
Heavy CROSSKILL-roller Ø 400 mm
Height adjustable side deflectors

2 rows of tines shear bolt protection, duckfoot shares 265 mm

2 rows of strengthened spring S-tines duckfoot shares 265 mm

2 rows of tines NON-STOP protection duckfoot shares 265 mm

3 rows of straight spring tines with reversible points

Heavy CROSSKILL-roller Ø 400 mm

Hydraulic adjustment of the standard levelling boards

Rear transport chassis with tyres 10,0/75-15,3, incl. drawbar with lower link connection (with foldable stand) instead of three point linkage

Track eradicators with reversible points

Jagged levelling board front, rigid

Hydraulic adjustment of the standard levelling boards

TURBOCOMBINATOR KS 300: with 2 flat bar crumblers Ø 330 mm and tube bar crumbler Ø 400 mm

Model	Working width (cm)	Tines (pcs.)	Working sections x width (cm)	Required power (HP)	Weight (kg)	Productivity (ha/h)
2 rows of tines shear bolt protection, duckfoot shares 265 mm	300	12 + 4	2 x 150	80 - 120	1.450	2,8
2 rows of strengthened spring S-tines duckfoot shares 265 mm	300	12 + 4	2 x 150	80 - 120	1.480	2,8
2 rows of tines NON-STOP protection duckfoot shares 265 mm	300	12 + 4	2 x 150	80 - 120	1.510	2,8
3 rows of straight spring tines with reversible points	300	36 + 4	2 x 150	80 - 120	1.555	2,8

TURBOCOMBINATOR KS 400: with 2 flat bar crumblers Ø 330 mm and tube bar crumbler Ø 400 mm

Model	Working width (cm)	Tines (pcs.)	Working sections x width (cm)	Required power (HP)	Weight (kg)	Productivity (ha/h)
2 rows of tines shear bolt protection, duckfoot shares 265 mm	400	16 + 4	2 x 200	120 - 160	1.670	3,7
2 rows of strengthened spring S-tines duckfoot shares 265 mm	400	16 + 4	2 x 200	120 - 160	1.700	3,7
2 rows of tines NON-STOP protection duckfoot shares 265 mm	400	16 + 4	2 x 200	120 - 160	1.770	3,7
3 rows of straight spring tines with reversible points	400	48 + 4	2 x 200	120 - 160	1.825	3,7
