Trailed combined cultivator / Hydraulically foldable
Working width 7 - 12 m

Combined cultivator TURBOCOMBINATOR L

Field of application / advantages

  • Especially designed for an universal seedbed preparation, the TURBOCOMBINATOR L ensures excellent soil loosening, crumbling and levelling at a high productivity rate.

Features

  • Adjustable, spring loaded levelling board for optimal levelling of the soil.
  • Loosening of the soil with 4-row tine sections in working depth 2-12 cm.
  • Adjustable double crumbler roller (wire roller) for an extra fine crumbled seedbed.
  • Recommended working speed: 9- 13 km/h

Double crumbler roller (wire roller), tine sections, adjustable depth guidance wheels

Double crumbler roller (wire roller), tine sections, adjustable depth guidance wheels

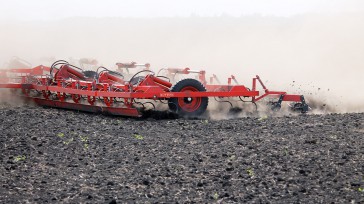

TURBOCOMBINATOR L work process

TURBOCOMBINATOR L work process

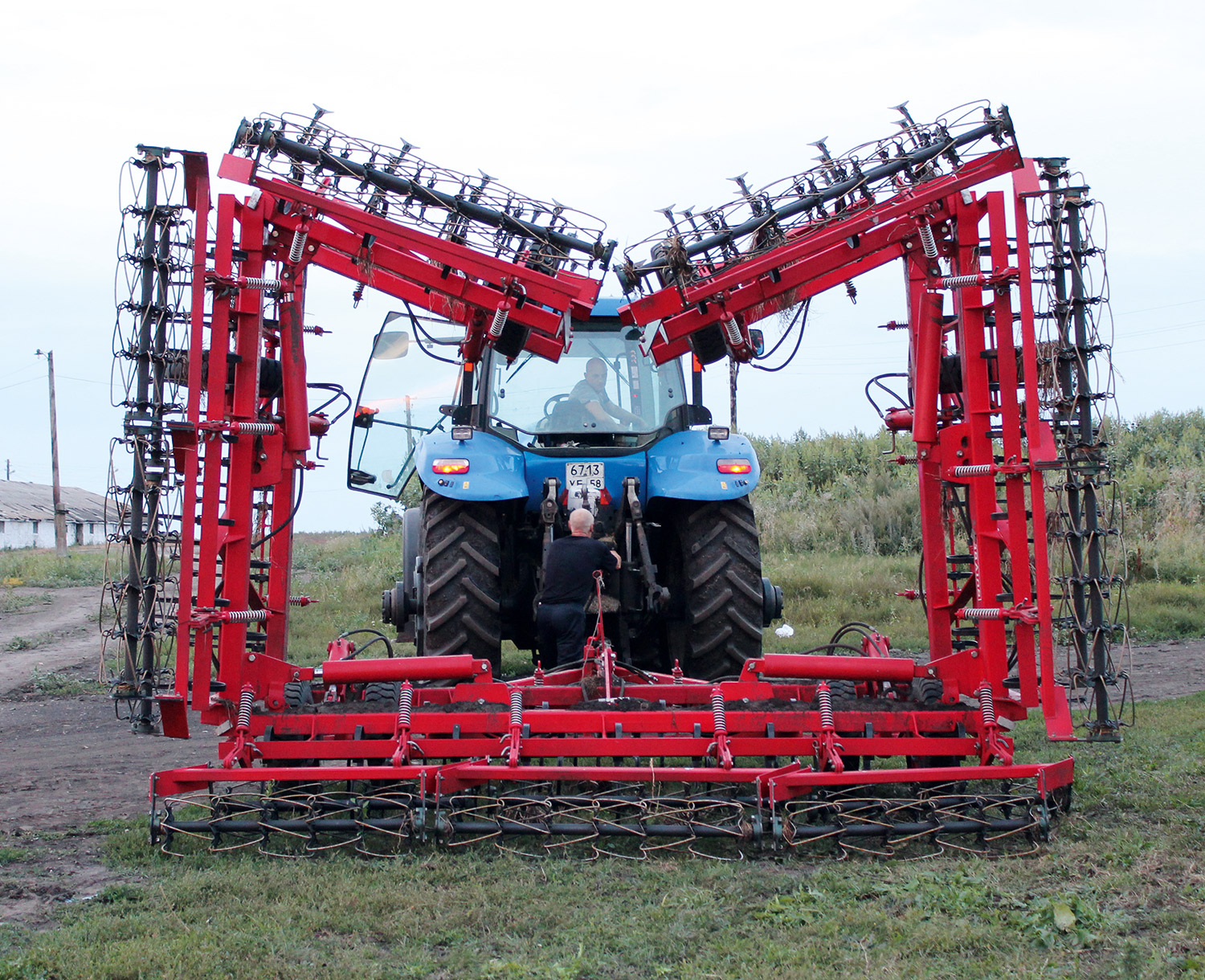

Transport position

Combined cultivator TURBOCOMBINATOR L transport position

Product features

  • Working width 7 to 12 m
  • For tractors 105 - 300 HP
  • Sturdy square profile framework
  • 4-row tine sections
  • Transport width:
    Working width 7 | 8 m: 3 m
    Working width 9,6 m: 4,3 m
    Working width 12 m: 5,2 m

Standard features

  • Drawbar with drawbar eye Ø 51 mm
  • 4 hydraulic folding cylinders
  • Greasable ball bearings
  • Chassis with tyres 155x70/R13
    Working width 7 | 8 | 9,6 m: 4 wheels
    Working width 12 m: 8 wheels
  • Adjustable depth guidance wheels with crank handle
  • Foldable stand with crank handle

Construction

  • Adjustable, spring loaded levelling board front
  • 4-row tine sections with spring S-tines 32x12x400 mm, with reversable points
  • Adjustable, spring loaded double crumbler roller (wire roller) Ø 300/ Ø 300 mm

Options

  • Bearing protection caps
  • Duckfoot share 105 mm
  • Additional springs for tine reinforcement

Depth guidance wheel, tines

Depth guidance wheel, tines

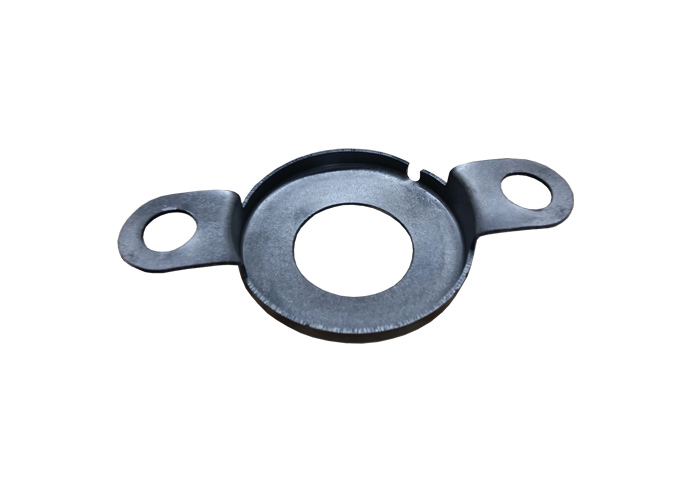

Bearing protection caps

Bearing protection caps

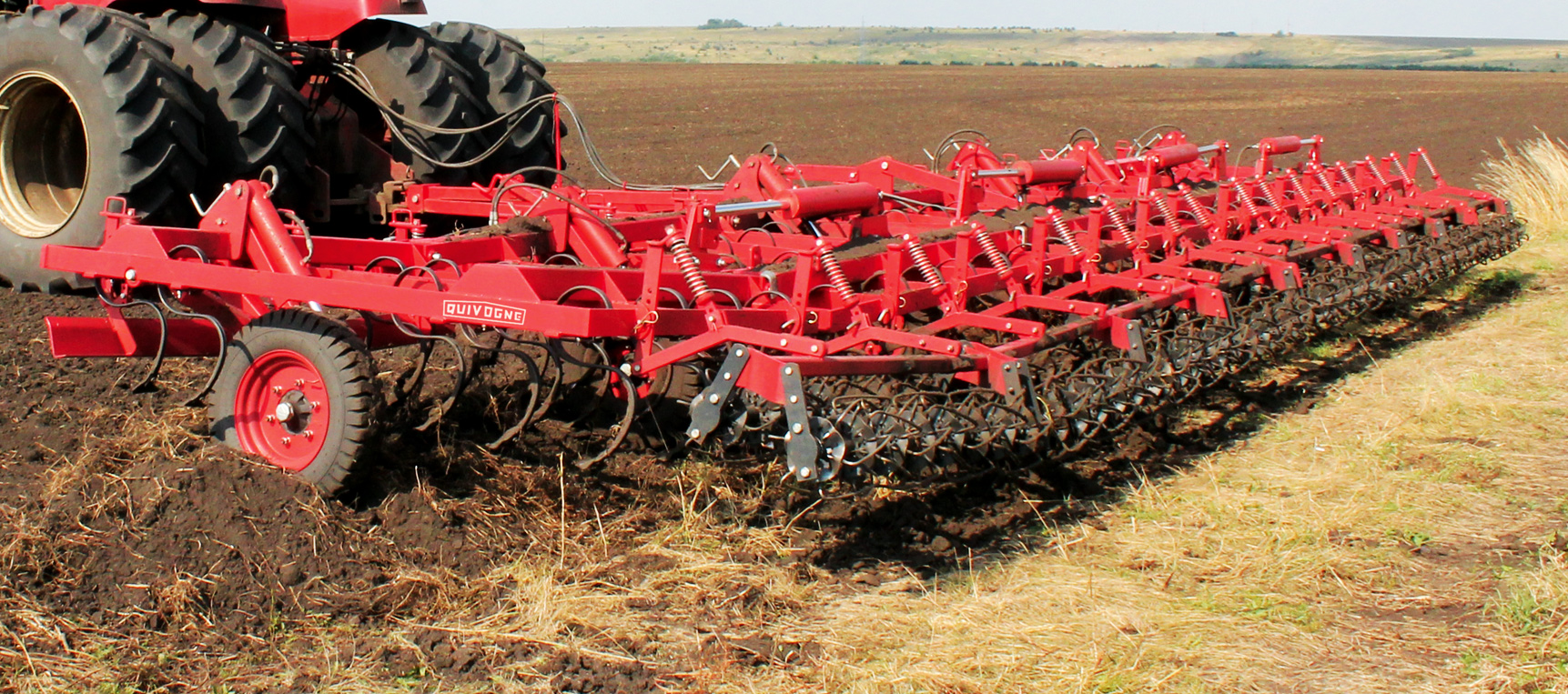

TURBOCOMBINATOR L: with levelling board, tine sections, double crumbler roller Ø 300/ Ø 300 mm

Model Working width (cm) Tines (pcs.) Transport width (cm) Weight (kg) Required power (HP) Productivity (ha/h)
TURBOCOMBINATOR L 700 700 70 300 1.880 105 - 175 7,0 - 9,8
TURBOCOMBINATOR L 800 800 80 300 2.150 120 - 200 8,0 - 11,2
TURBOCOMBINATOR L 960 960 96 430 2.580 140 - 240 9,6 - 13,4
TURBOCOMBINATOR L 1200 1200 119 520 3.870 180 - 300 12,0 - 16,8
