Trailed combined cultivator / hydraulically foldable or rigid
Working width 3 - 6 m

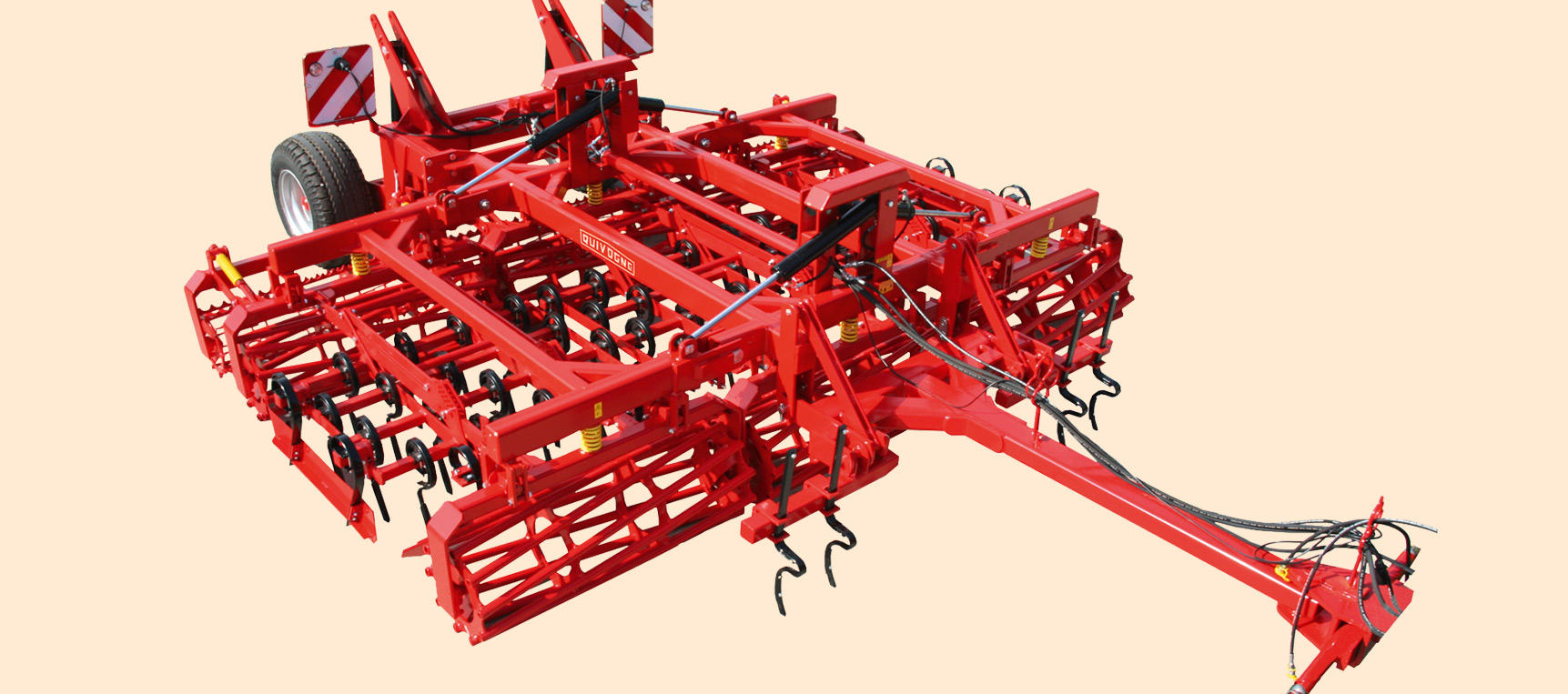

Combined cultivator TURBOCOMBINATOR S hydraulically foldable

Field of application / advantages

  • The TURBOCOMBINATOR S was designed for application at smaller-sized farms.

Features

  • Levelling and reconsolidation of the soil
  • Loosening of the soil with 2 or 4-row tine sections in working depth 2-12 cm
  • Rear lift chassis with optional three point linkage for combination with seeding machines.
  • Recommended working speed: 9-13 km/h

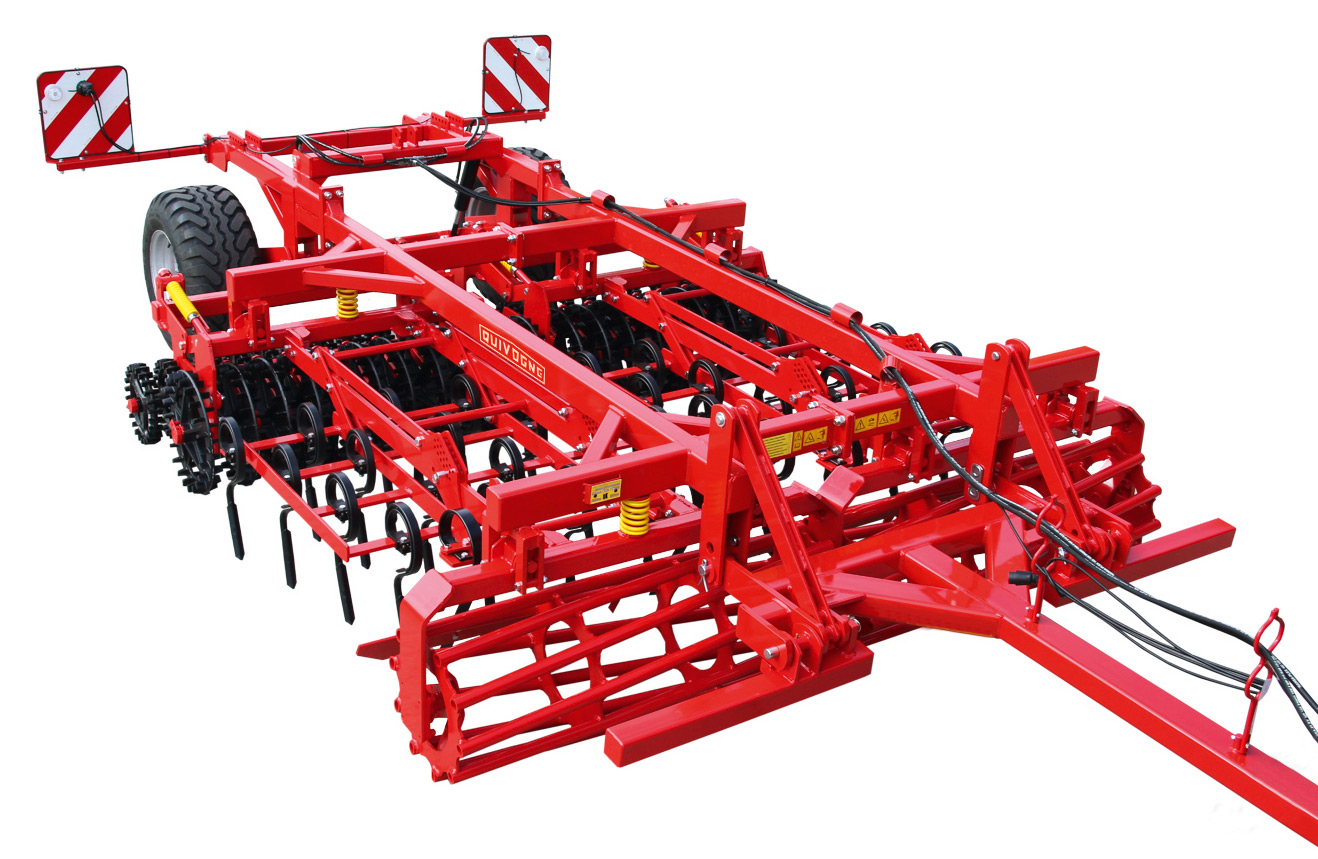

TURBOCOMBINATOR S rigid


Product features

  • Working width from 3 to 6 m
  • For tractors 80 - 240 HP
  • Square profile frame
  • Working width 3 m: rigid
    Working width 4 | 4,5 | 6 m: hydr. foldable
  • Force-guided harrow sections
  • Transport width: 3 m

Standard features

  • Drawbar with lower link connection Cat. 3
  • Rear lift chassis, 2 wheels with tyres:
    Working width 3 | 4 m: 11,5/80-15
    Working width 4,5 m: 15,0/55-17
    Working width 6 m: 19,0/45-17
  • 2 hydraulic lifting cylinders
  • 4 folding cylinders at foldable models

Construction

  • Tube roller Ø 480 mm front
  • Spring loaded levelling board behind 1st roller, rigid
  • Parallelogram-suspended tine sections: 2- or 4-row tine sections with various types of shares (see price table)
  • Tube roller Ø 480 mm in the middle
  • Notched roller Ø 400 mm rear

Options

  • Rear three point linkage Cat. 3
  • CROSSKILL-roller Ø 500 mm
  • Track eradicators
  • Tyres 500/55-20
  • Pneumatic brake
  • Warning plates and lighting

Video TURBOCOMBINATOR S


2 rows of tines shear bolt protection duckfoot shares 255 mm

4 rows of strengthened spring S-tines duckfoot shares 105 mm

4 rows of straight spring tines with reversible points

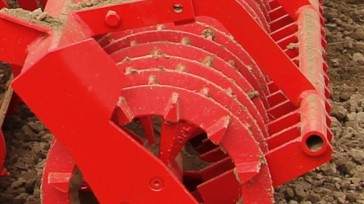

CROSSKILL-roller Ø 500 mm

Track eradicators with reversible tips

TURBOCOMBINATOR S 300: with 2 tube rollers Ø 480 mm and notched roller Ø 400 mm - rigid

Model Working width (cm) Tines (pcs.) Working sections x width (cm) Required power (HP) Weight (kg) Productivity (ha/h)
2 rows of tines
shear bolt protection
duckfoot shares 255 mm
300 12 2 x 150 80 - 120 2.200 2,7 - 3,9
4 rows of strengthened
spring S-tines
duckfoot shares 105 mm
300 38 2 x 150 80 - 120 2.300 2,7 - 3,9
4 rows of
straight spring tines
with reversible points
300 38 2 x 150 80 - 120 2.270 2,7 - 3,9

TURBOCOMBINATOR S 400: with 2 tube rollers Ø 480 mm and notched roller Ø 400 mm - hydraulically foldable

Model Working width (cm) Tines (pcs.) Working sections x width (cm) Required power (HP) Weight (kg) Productivity (ha/h)
2 rows of tines
shear bolt protection
duckfoot shares 255 mm
400 16 2 x 120
1 x 150
120 - 160 3.400 3,6 - 5,2
4 rows of strengthened
spring S-tines
duckfoot shares 105 mm
400 49 2 x 120
1 x 150
120 - 160 3.500 3,6 - 5,2
4 rows of
straight spring tines
with reversible points
400 49 2 x 120
1 x 150
120 - 160 3.470 3,6 - 5,2

TURBOCOMBINATOR S 450: with 2 tube rollers Ø 480 mm and notched roller Ø 400 mm - hydraulically foldable

Model Working width (cm) Tines (pcs.) Working sections x width (cm) Required power (HP) Weight (kg) Productivity (ha/h)
2 rows of tines
shear bolt protection
duckfoot shares 255 mm
450 18 3 x 150 135 - 180 3.950 4,0 - 5,9
4 rows of strengthened
spring S-tines
duckfoot shares 105 mm
450 57 3 x 150 135 - 180 4.050 4,0 - 5,9
4 rows of
straight spring tines
with reversible points
450 57 3 x 150 135 - 180 4.010 4,0 - 5,9

TURBOCOMBINATOR S 600: with 2 tube rollers Ø 480 mm and notched roller Ø 400 mm - hydraulically foldable

Model Working width (cm) Tines (pcs.) Working sections x width (cm) Required power (HP) Weight (kg) Productivity (ha/h)
2 rows of tines
shear bolt protection
duckfoot shares 255 mm
600 24 4 x 150 180 - 240 5.100 5,4 - 7,8
4 rows of strengthened
spring S-tines
duckfoot shares 105 mm
600 76 4 x 150 180 - 240 5.200 5,4 - 7,8
4 rows of
straight spring tines
with reversible points
600 76 4 x 150 180 - 240 5.170 5,4 - 7,8
