stubble cultivator / 2,2 to 6,0 m working width
10 - 20 cm working depth

Features

Universal machine for processing of crop residues and before-seeding soil processing allow to work at the depth up to 20 cm.
Even distribution of organic matter on the whole working depth, perfect mixing it with the soil. Two row frame in combination with caved-in discs and roller allows easily to adjust the working depth and guarantees precise penetration.

Specifications of Maxiculteur

  • Working width 2,2 to 6,0 m
  • Three-point linkage
  • Models with working width 2,2 – 4,0 m: rigid frame
  • Models with working width 4,0 – 6,0 m: hydraulic foldable frame
  • 2 tine rows
  • Between-row spacing 800 mm
  • Wing shares 480 mm. Tine spacing 42 cm
  • Frame clearance 800 mm
  • Leveling discs Ø 400 mm
  • Stone protection: shear screws 12 mm or spiral spring
  • Roller Ø 480 mm, standard version

Options

  • Side discs L+R, spring
  • NON-STOP stone protection
  • Ring-tube roller Ø 600 mm + scrapers
  • Double roller Ø 400 mm

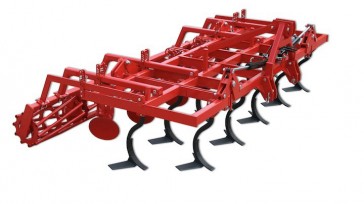

2-rows construction

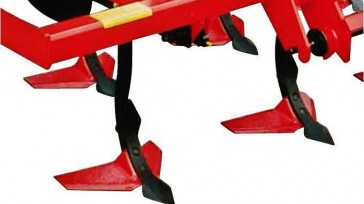

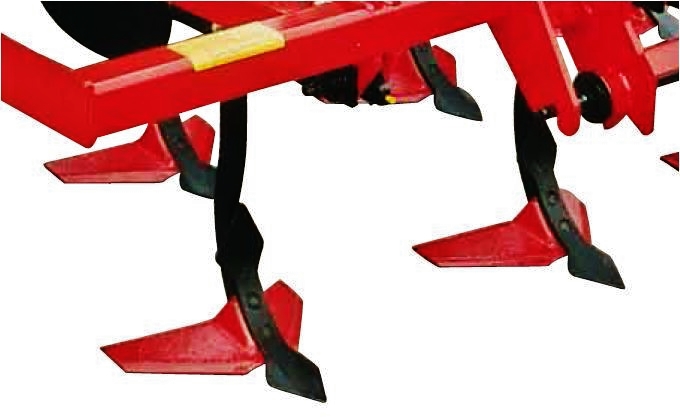

Wing shares 480 mm

Double roller Ø 400 mm

Technical parameters of Maxiculteur / 2-rows

Maxiculteur: rigid frame

Model /
Tines (pcs)

Working width

(cm)

Leveling discs

(pcs)

 Weight
(kg)

Required power

(hp)

Productivity

(ha/h)
Maxiculteur 220/5 220 4 708 70 - 100 1,5 - 1,7
Maxiculteur 260/6 260 5 813 80 - 110 1,8 - 2,1
Maxiculteur 300/7 300 6 1.075 90 - 135 2,1 - 2,4
Maxiculteur 400/8 400 8 1.150 120 - 180 2,8 - 3,2

Maxiculteur: hydraulic foldable frame

Model /
Tines (pcs)

Working width

(cm)

Leveling discs

(pcs)

 Weight
(kg)

Required power

(hp)

Productivity

(ha/h)
Maxiculteur 400/8 400 8 1.780 120 - 180 2,8 - 3,2
Maxiculteur 500/11 500 10 1.880 150 - 225 3,0 - 4,0
Maxiculteur 600/13 600 12 2.090 180 - 270 4,2 - 4,8
