Mounted reversible plough
4 or 5 furrows

Mounted reversible plough ASTER 140

Field of application / advantages

  • The mounted reversible plough Quivogne ASTER 140 is our premium machine for medium and large-sized farms.
  • Effective mechanical weed control by depriving them from light.
  • Mechanical control of soil pests.
  • Soil warms up faster and is better aerated, giving higher yields of crops requiring warmth.
  • Reduced risk of infection of subsequent crops by fusaria. The residue of the previous crop is entirely removed.
  • Recommended working speed 6 - 8 km/h

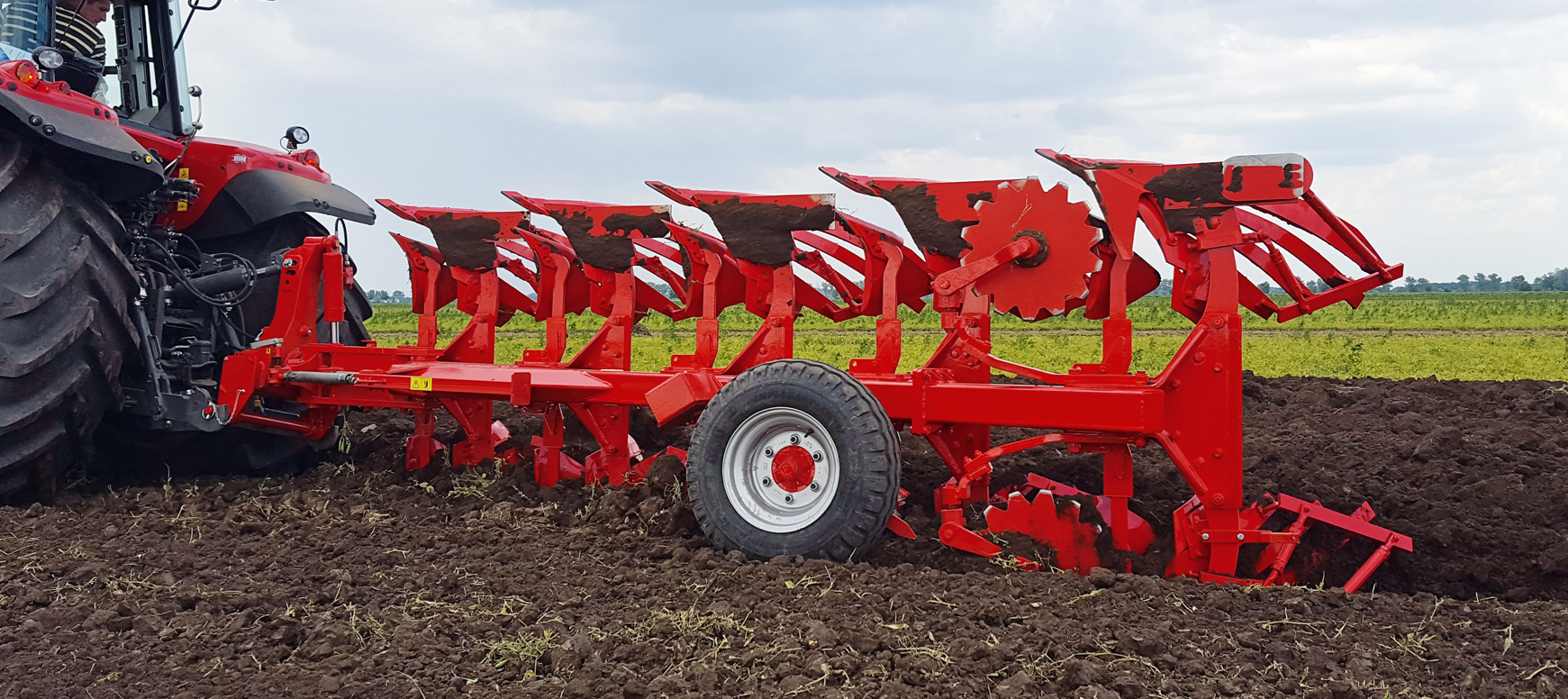

Mounted reversible plough ASTER 140 with furrow press

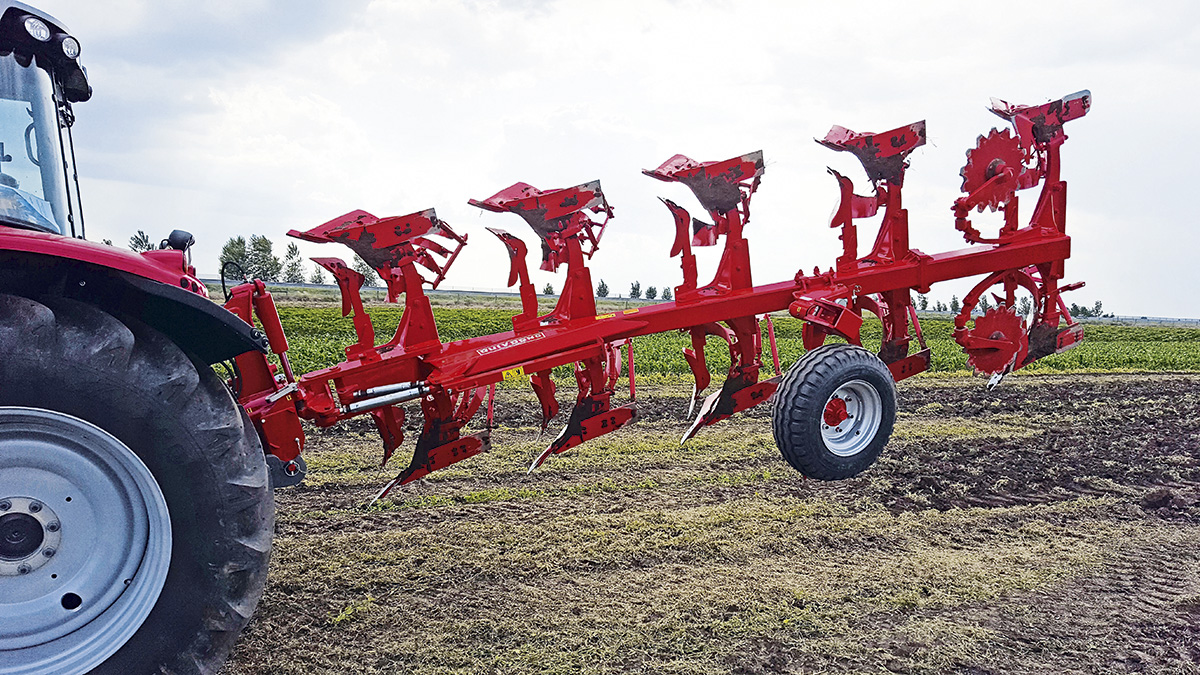

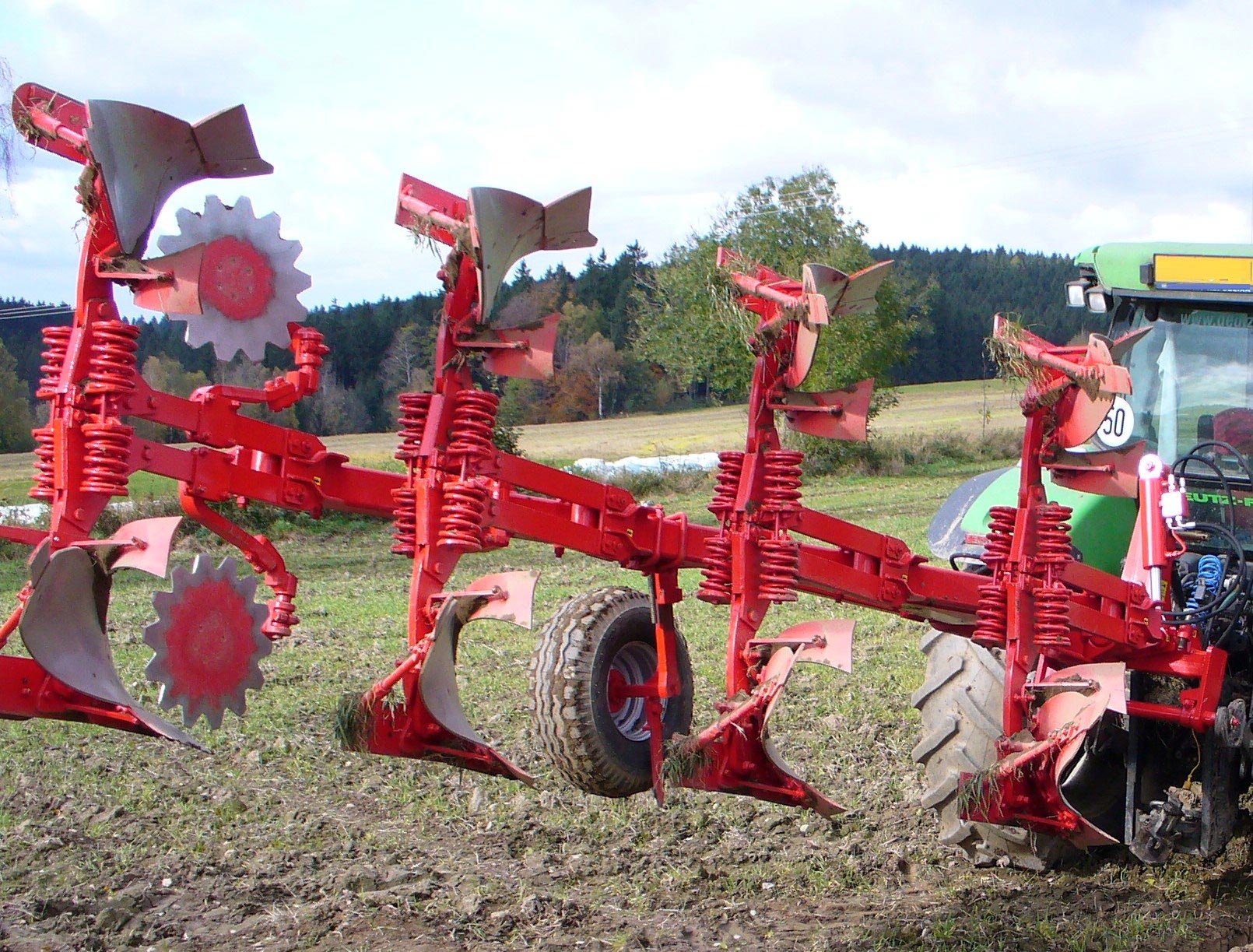

Mounted reversible plough ASTER 140 Turning position, with disc coulters
Mounted reversible plough ASTER 140 Turning position

Turning position

Transport position

Work process

Product features

  • For tractors up to 200 hp
  • 4 or 5 furrows
  • Interbody clearance 90 or 100 cm
  • Mechanically adjustable working width: 30 - 35 - 40 - 45 - 50 cm
  • Underframe clearance 80 cm
  • Working depth up to 35 cm

Standard features

  • Three point linkage mounted: Cat. 2/36 or 3/36
    - Hydraulic turnover device Q110 - turning axis with Ø110 mm
    - Double acting cylinder
  • Box section frame 140x140x10 mm
  • Universal bodies QR 400 with reversible point share and tailpiece
  • Shearbolt stone protection
  • Suspended depth wheel 10.0/75-15,3
  • Stand, warning plates

Options

  • Plough body QM 400, QV 9 or QV 28
  • Hydraulic beam pivot system
  • Manure skimmers or Trashboards
  • Landside knife or disc coulter Ø500 mm
  • Ploughshare extender
  • Suspended transport depth wheel 10.0/75-15,3 or 13.0/55-16
  • Furrow press arm, hydraulic
  • NON-STOP stone protection with spiral springs

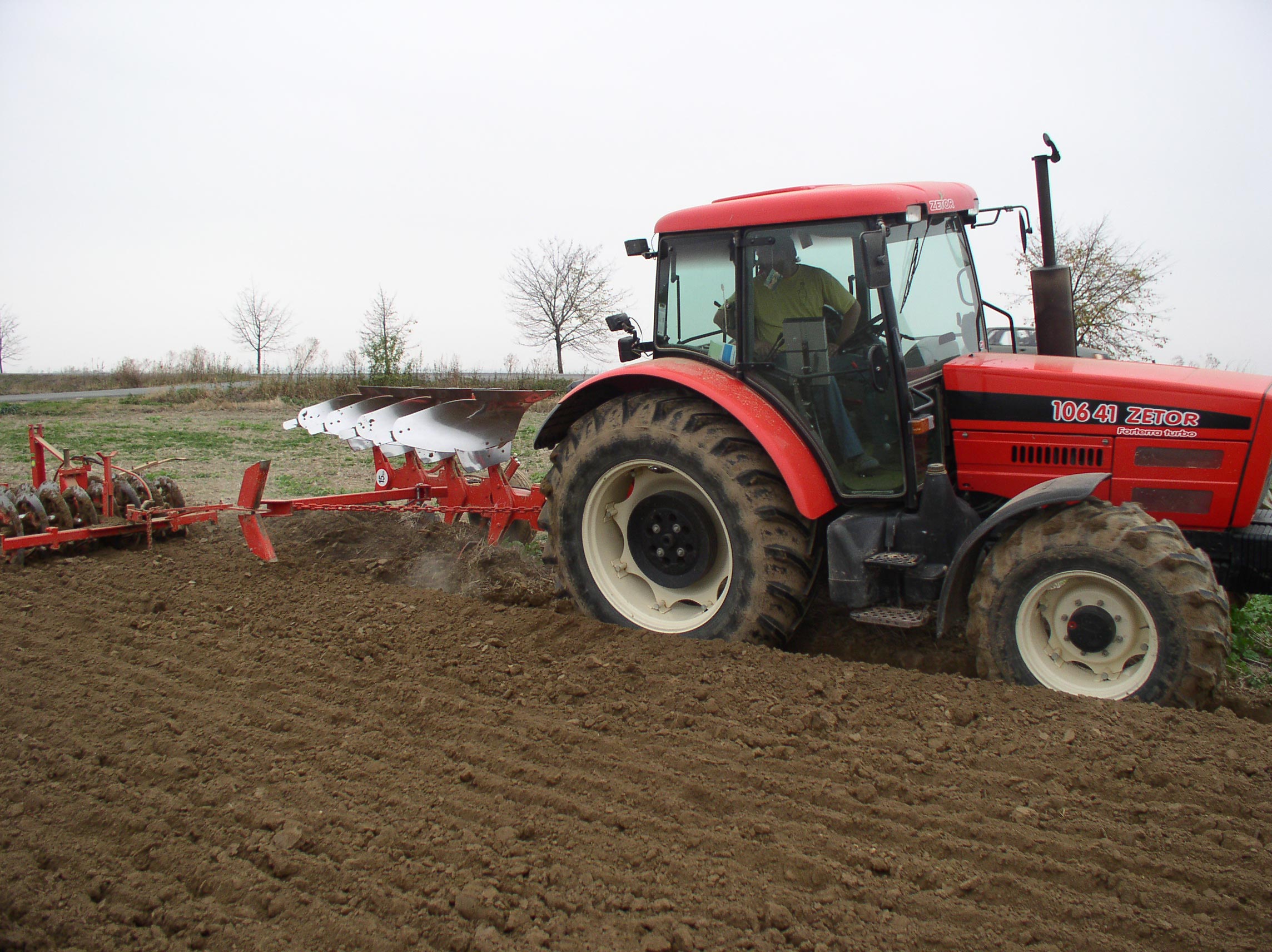

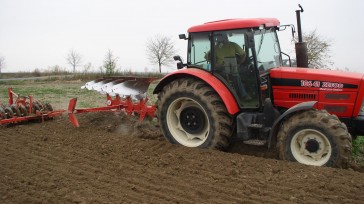

Hydraulic beam pivot system (Memory cylinder)

Hydraulic beam pivot system (Memory cylinder)

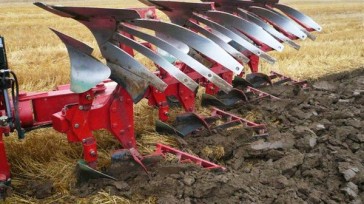

Slatted bodies QM 400 (Option)

Slatted bodies QM 400 (Option)

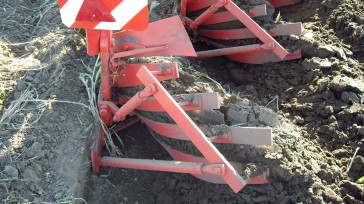

Slatted bodies QM 400

Slatted bodies QM 400

ASTER 140

Model Number of
furrows		 Working width
per furrow (cm)		 Interbody
clearance (cm)		 Tractor
(hp)		 Weight
(kg)
ASTER 140 90 4 4 30 - 35 - 40 - 45 - 50 90 110 - 160 1.445
ASTER 140 90 4+1 5 (4+1) 30 - 35 - 40 - 45 - 50 90 150 - 200 1.670
ASTER 140 100 4 4 30 - 35 - 40 - 45 - 50 100 110 - 160 1.455
ASTER 140 100 4+1 5 (4+1) 30 - 35 - 40 - 45 - 50 100 150 - 200 1.680
