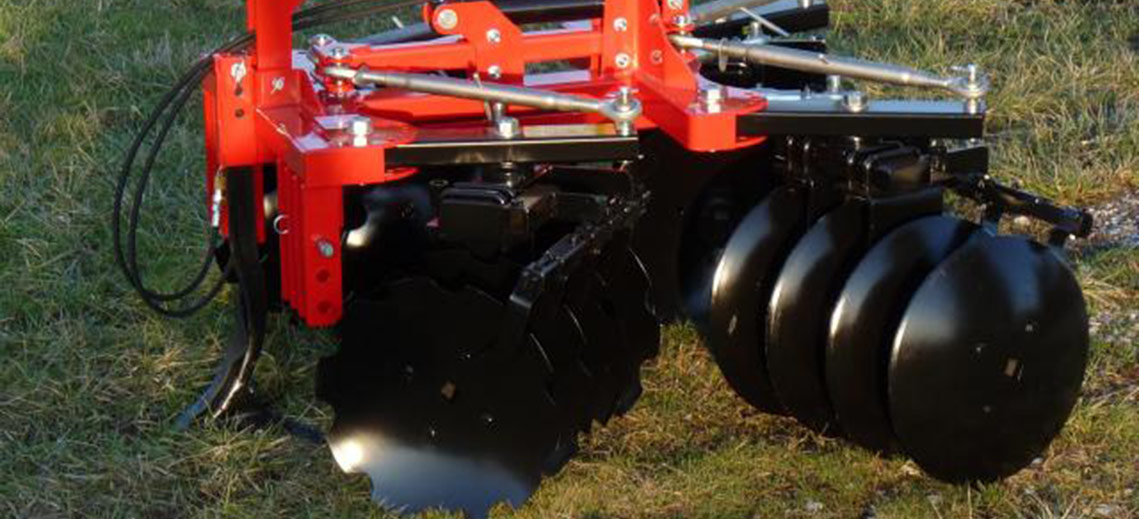

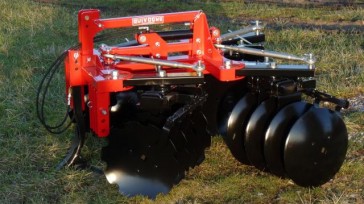

light disc harrow for vine farms
1,05 to 2,38 m working width / disc diameter Ø 560 mm

Features

  • Especially engineered for the maintenance of vines
  • The construction of PXVI allows to change the working width without modifying zhe attack angle
  • The central tine has a reversible share and a sweep wings
  • Mechanical (standard equipment) or hydraulical (as an option) adjustment of working width

Specifications of PXVI

  • Working width 1,05 to 2,38 m
  • 1 reinforced central frame
  • Three-point linkage category I and II
  • Attack angle adjustment trough third point linkage
  • Hydraulic working width adjustment
  • Central tine in the front
  • 4 disc gangs mounted on parallelogram able to be extended
  • Shaft square 40x40 mm
  • Jagged discs in the front Ø 560 x 5 mm and smooth discs at the back Ø 560 x 5 mm, at will.
    Disc spacing 215 mm
  • Weight per disc 65 kg
  • 8 triple waterproof steel ball bearings

Options

  • Side deflectors
  • Jagged discs Ø 560 mm instead of smooth discs Ø 560 mm
  • Set of 4 additional discs to rebuild PXVI 12 into PXVI 16
  • Set of 8 additional discs to rebuild PXVI 12 into PXVI 20
  • Hydraulic adjustment of working width instead of mechanical adjustment of working width

Technical parameters of PXVI

Model /

Discs (pcs)

Working width

(cm)

Bearing

(pcs)

Weight

(kg)

Required power

(hp)

PXVI 8 105 - 148 4 672 40 - 50
PXVI 12 148 - 198 8 712 40 - 50
PXVI 16 188 - 238 12 800 50 - 70
PXVI 20 188 - 238 12 888 50 - 70
