DEMETER

Mounted/trailed spring-tines cultivator
hydraulically foldable or rigid / Working width 3 - 6 m

Field of application / advantages

• The spring-tines cultivator DEMETER is ideal for superficial stubble cultivation, for sed beed preparation and weed control.
• Blockage-free working through the high distance of 640 mm between the tine sections and the high frame ground clearance of 580 mm.
• Tillage in working depth up to 15 cm
• Optional trailed usage through mounting a drawbar and a rear chassis.
• Recommended working speed: 9-13 km/h

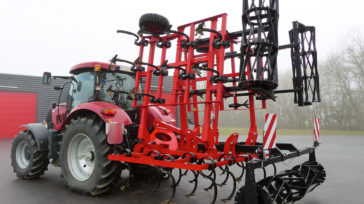

Transport position, with Z-roller

hydraulically foldable, with levelling board

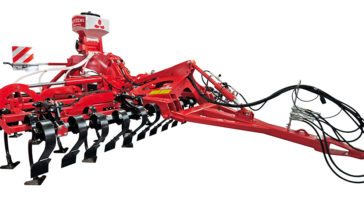

with drawbar (trailed version) and fertilizer spreader

Product features

• Working width 3 - 6 m
• For tractors 140 - 280 HP
• Main frame profile: 80 x 80 x 6 mm
• Short frame without levelling board Long frame with levelling board
• 4 row tine section, frame profile: 60 x 60 mm, section spacing 640 mm
• Frame ground clearance: 580 mm
• Transport widths:
  Working width 3,5 rigid: 3,5 m
  Working width 3 | 4 | 5 | 6 m: 3 m

Standard features

• Three point linkage Cat. 2 and 3
• 2 hydraulic folding cylinders with transport lock at hydraulically foldable implements
• Spring tines 70 x 12 mm with reversible chisel tip 60 mm, tine spacing 15 cm
• With or without hydraulically adjustable levelling board with wear plates before the tine sections

Options

• Duck foot shares instead of reversible chisel tips
• Adjustable depth guidance wheels 650 x 10
• Fertilizer spreader
• Drawbar and rear chassis for transformation into trailed version
• Warning plates and lighting

Work process, comb harrow before trailing roller

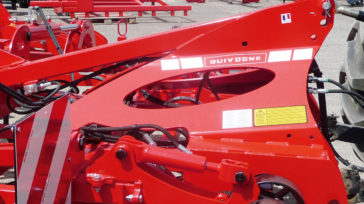

reinforced three point linkage

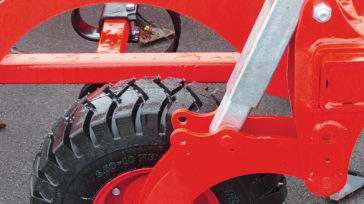

Adjustment of the depth guidance wheels

---

Video DEMETER

---

DEMETER: short frame, without levelling board - hydraulically foldable

Model	Working width (cm)	Tines (pcs.)	Required power (HP)	Weight (kg)	Productivity (ha/h)
DEMETER 400 H	400	28	180 - 240	1.269	3,6 - 5,2
DEMETER 500 H	500	34	220 - 260	1.460	4,0 - 5,9
DEMETER 600 H	600	40	240 - 280	1.569	5,4 - 7,8

DEMETER: short frame, without levelling board - rigid

Model	Working width (cm)	Tines (pcs.)	Required power (HP)	Weight (kg)	Productivity (ha/h)
DEMETER 300 S	300	20	140 - 190	795	2,7 - 3,9
DEMETER 350 S	350	22	160 - 200	855	3,0 - 3,7

---

DEMETER: long frame, with levelling board - hydraulically foldable

Model	Working width (cm)	Tines (pcs.)	Required power (HP)	Weight (kg)	Productivity (ha/h)
DEMETER 400 HP	400	28	180 - 240	1.765	3,6 - 5,2
DEMETER 500 HP	500	34	220 - 260	2.028	4,0 - 5,9
DEMETER 600 HP	600	40	240 - 280	2.203	5,4 - 7,8

DEMETER: long frame, with levelling board - rigid

Model	Working width (cm)	Tines (pcs.)	Required power (HP)	Weight (kg)	Productivity (ha/h)
DEMETER 300 SP	300	20	140 - 190	1.080	2,7 - 3,9
DEMETER 350 SP	350	22	160 - 200	1.168	3,0 - 3,7
