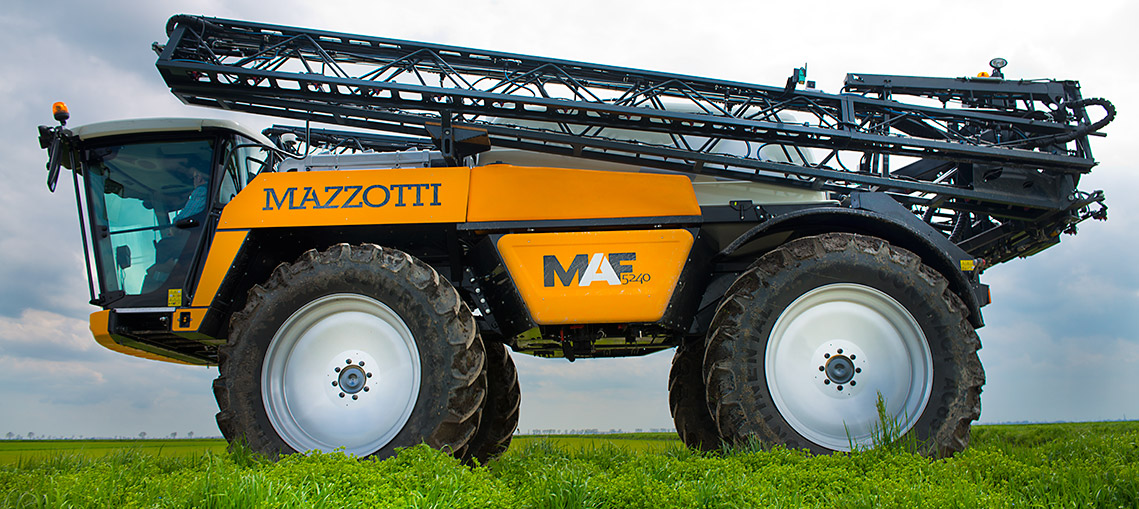

Self-propelled sprayer / 4.600 und 5.300 lt main water tank
24-28-32-36 mt boom

Features

  • The MAF projet had, as a first project data, the equal distribution on both axles
  • MAF Reach 50% front and 50% Rear with full tank and open boom. Important for a powerfull Traction.

Specifications

  • Engine: Perkins 6600 cc - EUR 3 - 237 HP/1900 rpm - 6 cylinders - Power Pack silenced
  • Water cooling system
  • Hydrostatic transmission
  • Hydrostatic pump: twin SAUER pump 2 x 100 lt
  • Traction to wheel: poclain motors
    Traction: 4 wheel drive
  • Suspensions: hydropneumatic on the 4 wheels, managed by a control unite each axle
  • Tracking: from 2250 to 2950 (clearance 1500-1700 mm) or from 1800 to 2250 (clearance 1300 mm)
  • Clearance: 1500 mm, available 1300 and 1700 mm
  • Steering wheels: 4 wheels steering Mazzotti System
  • Turning radius: 4100 / 5900 mm
  • Main water tank capacity: 4600 lt (MAF 4240), 5300 lt (MAF 5240)
  • Fresh water tank 520 lt (2x260 lt)
    hand wash tank 15 lt
  • Oil tank 210 lt
  • Premixer 60 lt
  • Cabin: CLAAS cabin, pressurized, pneumatic sead, Ergonomic consolle, passenger seat, Level 4 available
  • Booms: 24 - 28 - 32 - 36 m
    Boom equipment variable geometry, self leveling hydraulick lock, independent folding arms, Trijet jets, ceramic nozzles
  • Carbon filters
  • 2 hydraulic ladders
  • Water pump 400 l / min 20 bars
  • Dimensions: 2550 x 9100 x 3600 mm
  • Pitch: 3600 mm
  • Weight distribution full / water open boom: front 50% / rear 50%
