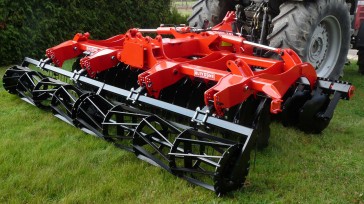

mounted compact disc harrow / hydraulically foldable
4,0 to 6,0 m working width / disc diameter Ø 450 & Ø 560 mm

Features

  • DISKATOR compact disc harrows are universal implements which are ideally suited for a fast, shallow (3 - 15 cm) and intensively mixing stubble work and operate blockage free even with high amounts of surface straw.
  • DISKATOR can be used in both conventional and mulch sowing systems.
  • The incorporation of maize straw and stubble, the loosening up of grassland or fallow land, seedbed preparation and the incorporation of organic manures offers additional flexibility in use.
  • High working speeds (15 - 18 km/h), low fuel consumption, little wear costs but top class quality of work are the special strengths of the DISKATOR.

Specifications of Diskator S

  • Working width 4,0 to 6,0 m
  • Robust frame construction with 2 rows of mulch discs. Frame profile 250 x 250 x 10 mm
  • Discs: Ø 450 or Ø 560 mm.
    The second disc row is offset by 125 mm from the first row, what allows solid tillage independent from working depth
  • Rubber shock-absorbers mean the concave discs adjust optimally to the ground, in standard version
  • Each disc is mounted on a separate bracket. Jagged discs are inclined for good soil penetration
  • The height and tilt of the weeder harrow are adjustable to level and structure the soil.
    The weeder harrow is positioned between the second disc row and the rear roller
  • Z-roller Ø 500 mm in standard version
  • Side deflectors to prevent the formation of earth banks (1 pair)

Options

  • L-roller ø 600 mm with scrapers
  • T-roller ø 600 mm with scrapers
  • U-roller ø 600 mm with scrapers
  • Lamflex roller ø 590 mm
  • ROLLPRO roller ø 600 mm with scrapers
  • Drawbar / Rear chassis 445/45-19,5

L-roller ø 600 mm with scrapers

T-roller ø 600 mm with scrapers

T-roller ø 600 mm with scrapers

Lamflex roller ø 590 mm

ROLLPRO roller ø 600 mm with scrapers

Drawbar / Rear chassis 445/45-19,5


Technical parameters

Discs (mm)

Working width (cm) Discs (pcs) Required power (hp) Weight (kg) Productivity (ha/h)
Ø 450 400 32 130 - 160 2.458 7,0
Ø 450 500 40 170 - 200 2.878 8,5
Ø 450 600 48 200 - 250 3.230 10,2
Discs (mm)

Working width (cm)

Discs (pcs)

Required power (hp)

Weight (kg)

Productivity (ha/h)

Ø 560 400 32 130 - 160 2.618 7,0
Ø 560 500 40 170 - 200 3.078 8,5
Ø 560 600 48 200 - 250 3.470 10,2
